Universal GrilleBar - Animated Startup LED Running Light and Sequential Switchback Functions

34 reviews

Style: 6"
Low Profile Load Resistors: None
Price:
Sale price$51.00
Stock:
In stock (87 units), ready to be shipped

Description




Universal Bars Sold as a Pair

PRODUCT DETAILS

Here at Sparksmith, we are looking to expand the line of bolt on lighting accessories for your ride. One way to do that is with these incredible DRL grille bars.

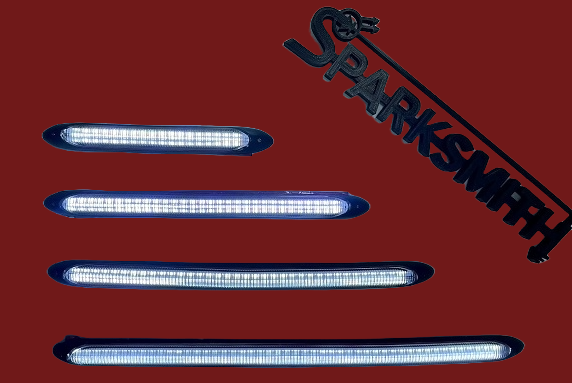

This kit will include two Universal LED strips with integrated drivers. Just choose the size that best fits your application.

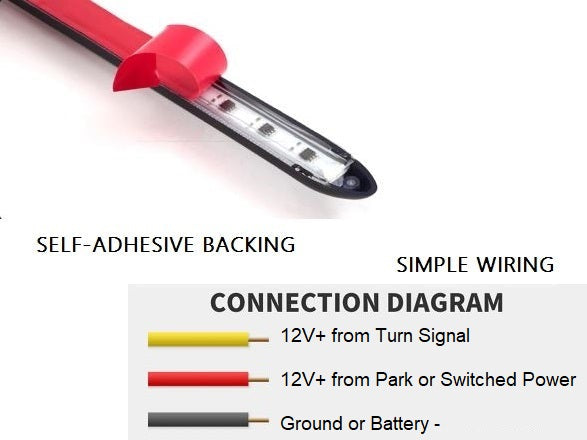

Wiring is simple. Ground the black wire to the nearest body ground. Splice the red wire to a 12V source (typically the parking lights) and splice the yellow to your factory turn signal. That's it! Nervous about cutting and splicing? Check out our How-To video (below) to help put your mind at ease. Still not ready to make the cut, ask us for help. We're happy to provide specific guidance for your exact application. Right down to the wire!

What's even better? We have optional HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of hyperflash. It really couldn't get any better.  These optional resistors are to be wired with one lead in the ground wire, and the other lead in the turn signal wire (not the positive).

Still have questions? Give us a call, text, email, IG message, or come by and see us!



WHAT'S INCLUDED

  • HOUSING: Self-Adhesive backing
  • LED STRIPS: 2x White w/Sequential Switchback
  • WIRING: Universal (bare wire inputs)

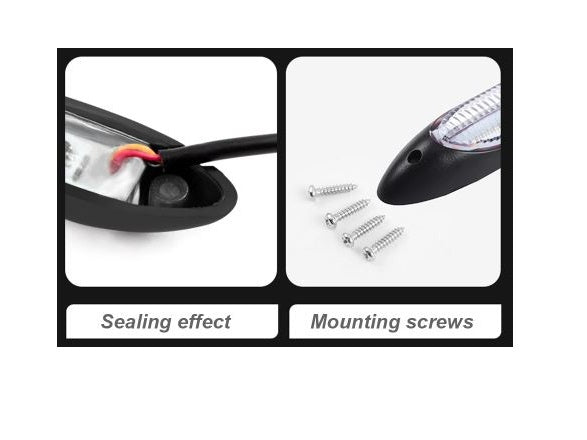

  • HARDWARE: Stainless steel screws
  • OPTIONAL LOAD RESISTORS: 2x Sparksmith HD Load resistors
  • WARRANTY: 3 Years
  • SUPPORT: DIY, but we're here to help. Ask any question about any make, any model. We're happy to support you the absolute best we can.



COMPATIBILITY

  • ANY 12VDC SYSTEM
  • SYSTEM INPUT: +/- 12V
  • CONNECTIONS: Bare Wire



TECH SPECS

  • PRIMARY FUNCTION: White
  • SECONDARY: Sequential Switchback

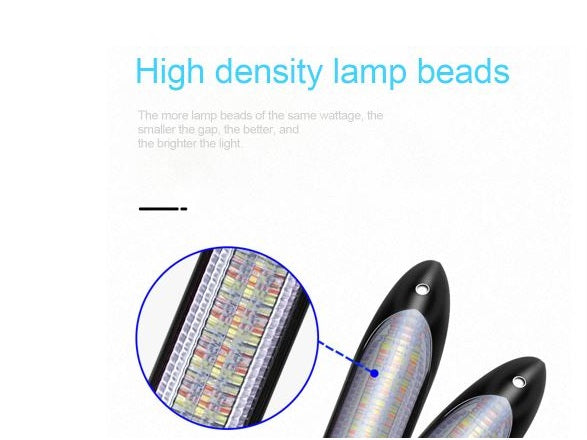

  • LIGHT SOURCE: Proprietary 2835 SMD LED
  • LUMEN RATING: 2400 Lumens per strip (14")
  • POWER: 10W per strip (14")
  • EXPECTED LIFESPAN: 50,000 hours

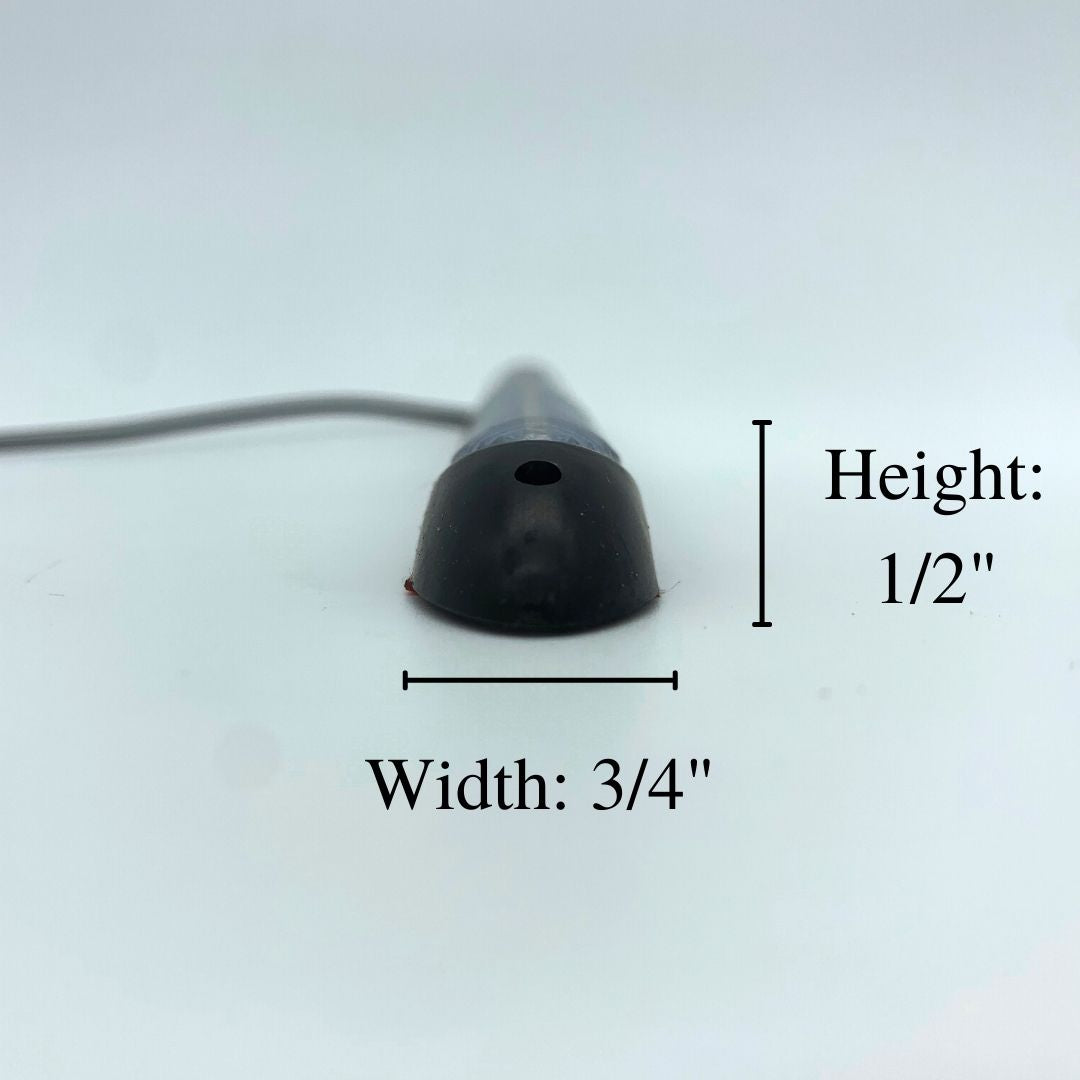

  • PCB WIDTH: 17mm
  • PCB THICKNESS: 16mm
  • DRIVER HOUSING: Cast Silicone & ABS
  • DRIVER PROTECTION: Full internal Potting
  • COLOR WHEN OFF: Neutral White

 Installation Video:

(Installation Kit Sold Separately)

Universal Installation Kit can be found here:

https://sparksmith.com/products/universal-grillebar-installation-kit



INTERNATIONAL SHIPPING

For a FREE custom international shipping quote contact us:

Phone: 828-508-0917

E-Mail: sparksmith.auto@gmail.com

Customer Reviews

Based on 34 reviews
68%
(23)
15%
(5)
0%
(0)
12%
(4)
6%
(2)
N
Noah Moosman
Great

I’ve been in love with the way the grill lights look and function. They look amazing on almost any truck you put them on. I bought them and my only concern was that the gage of the wire is so small so I went through two strips, luckily customer service was on my side and I love the way they turned I would definitely recommend. I would recommend these set of lights but just note you have to be careful because the wire is so small, it’s easy to break and melt the wire.

C
Carmello
After 6 month both have leds burnt out

Installed them on the truck in the spring, they have been on the truck less than 6 months and each of them already have dead LEDs. I paid a quote a bit with import fees to even get them to Canada. I’m not a happy customer.

C
Carter Jennings

I love them so far

A
Anthony DeFalco
Perfect Touch

They look amazing on the truck. I have an '04 F-250 and recently did the '05-'07 front end swap, makes the whole front end look so much nicer. Had to modify the grille to get the lights in there but threw them in with some JB Weld and they look amazing and really tie the front end together.

M
Misty Delaney
Great product!

Works and looks great!
