Universal GrilleBar Installation Kit

Save $8.09
6 reviews

Size: 6"-14"
Fuse Tap: ATC
Cloth Tape: Cloth Tape x 1 Roll
Sale price$45.90 Regular price$53.99
In stock (14 units), ready to be shipped





Here at Sparksmith, we are looking to expand the line of bolt on lighting accessories for your ride. One way to do that is with our incredible DRL grille bars.

Now we're making installation easier than ever. Just choose the fuse tap that matches the fuses in your under-hood fuse box and the size and number of aluminum mounting bars you need. Then check out our installation video for tips and tricks on installation.

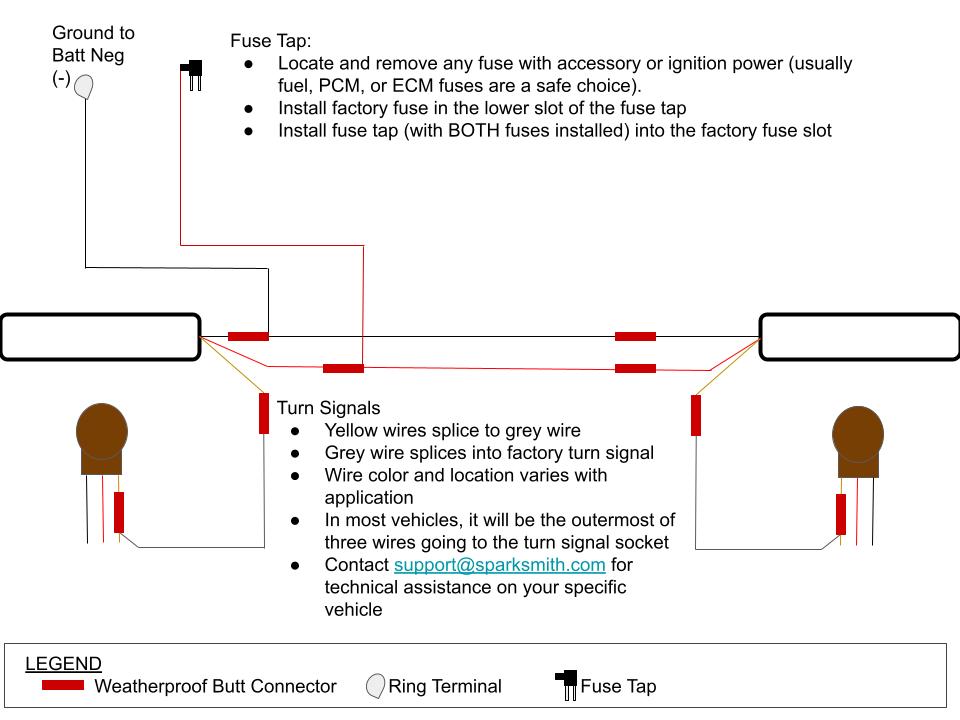

Wiring is simple:

1) Black wires to ground

2) Red wires go to the fuse tap which gets power from a switched 12V fuse under the hood (typically an ECM, PCM, or fuel pump fuse).

3) Each yellow wire goes to your factory turn signal. That's it!


Nervous about cutting and splicing? Check out our How-To video to help put your mind at ease. Still not ready to make the cut, ask us for help. We're happy to provide specific guidance for your exact application. Right down to the wire!

What's even better? We have optional HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of hyperflash. It really couldn't get any better.

Still have questions? Give us a call, text, email, IG message, or come by and see us!

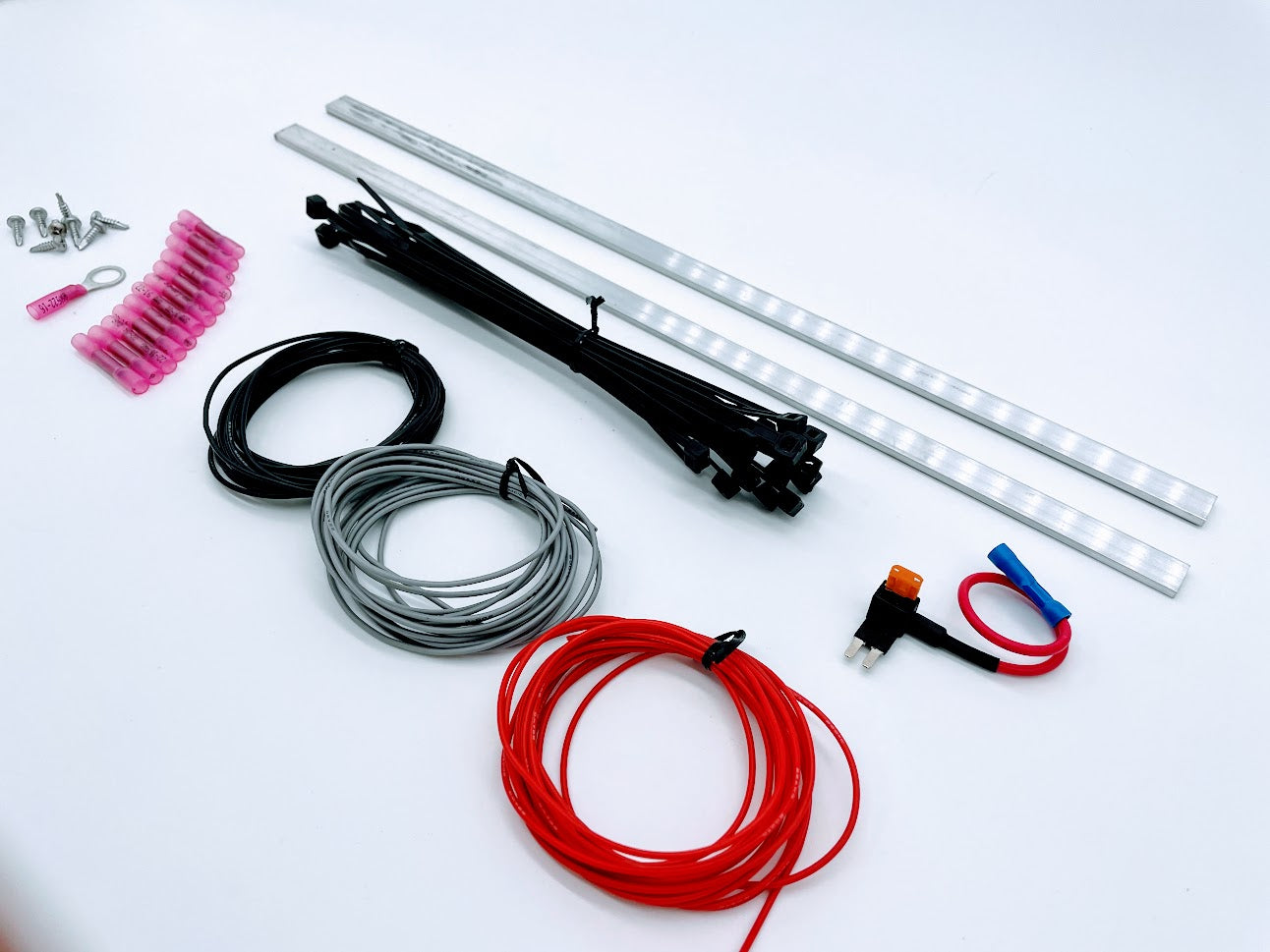

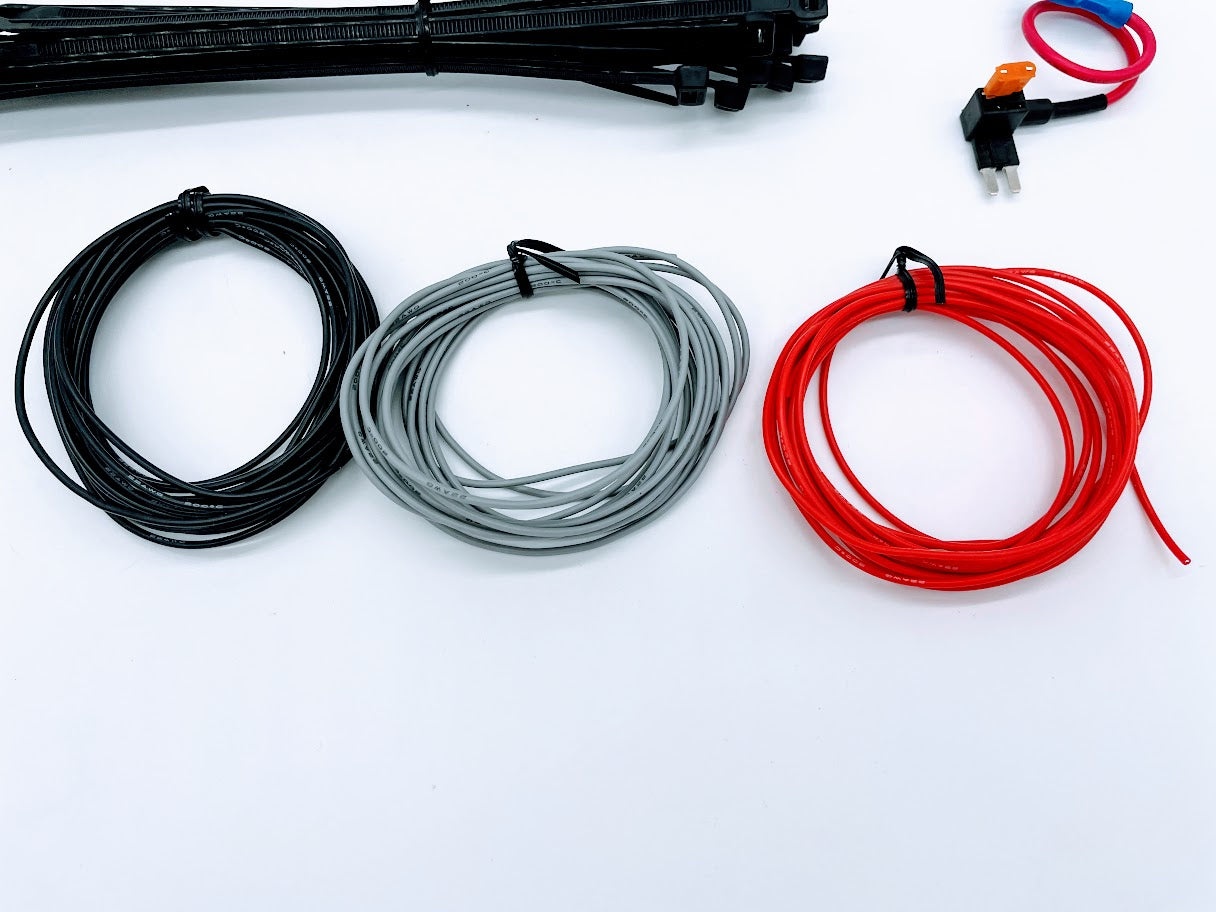

  • WIRE: 10 feet each of red, black, and grey 22 gauge hookup wire

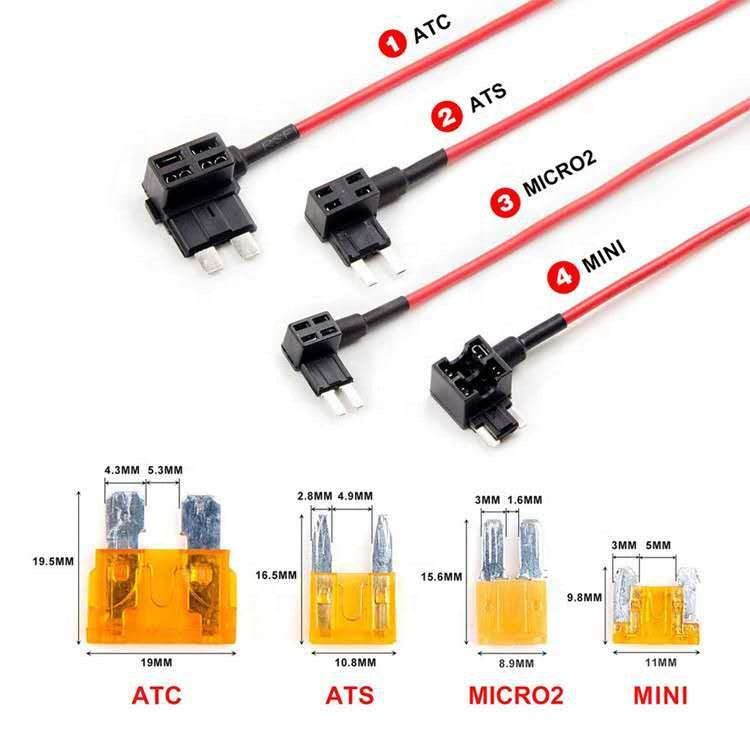

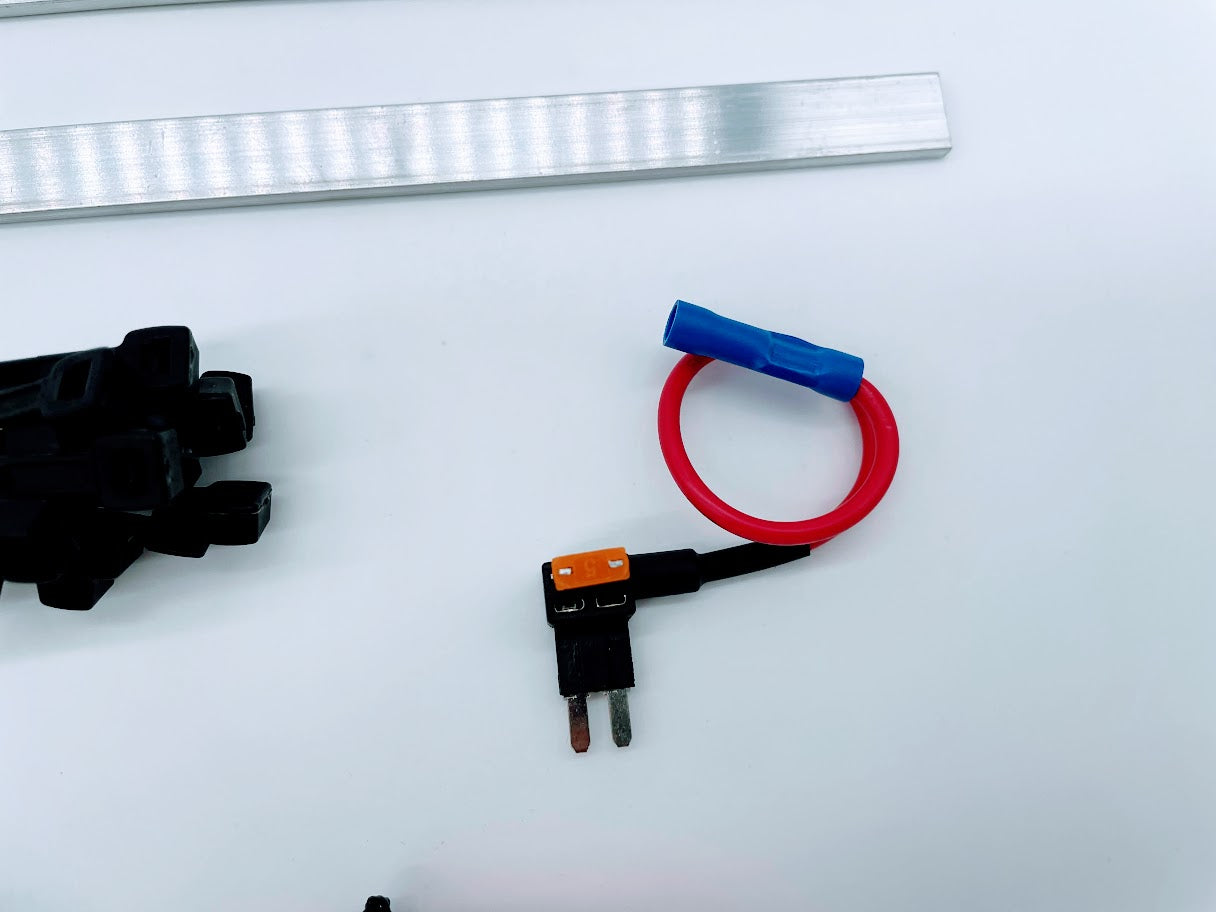

  • FUSE TAP: 1x fuse tap (match to your factory under-hood fuse style)

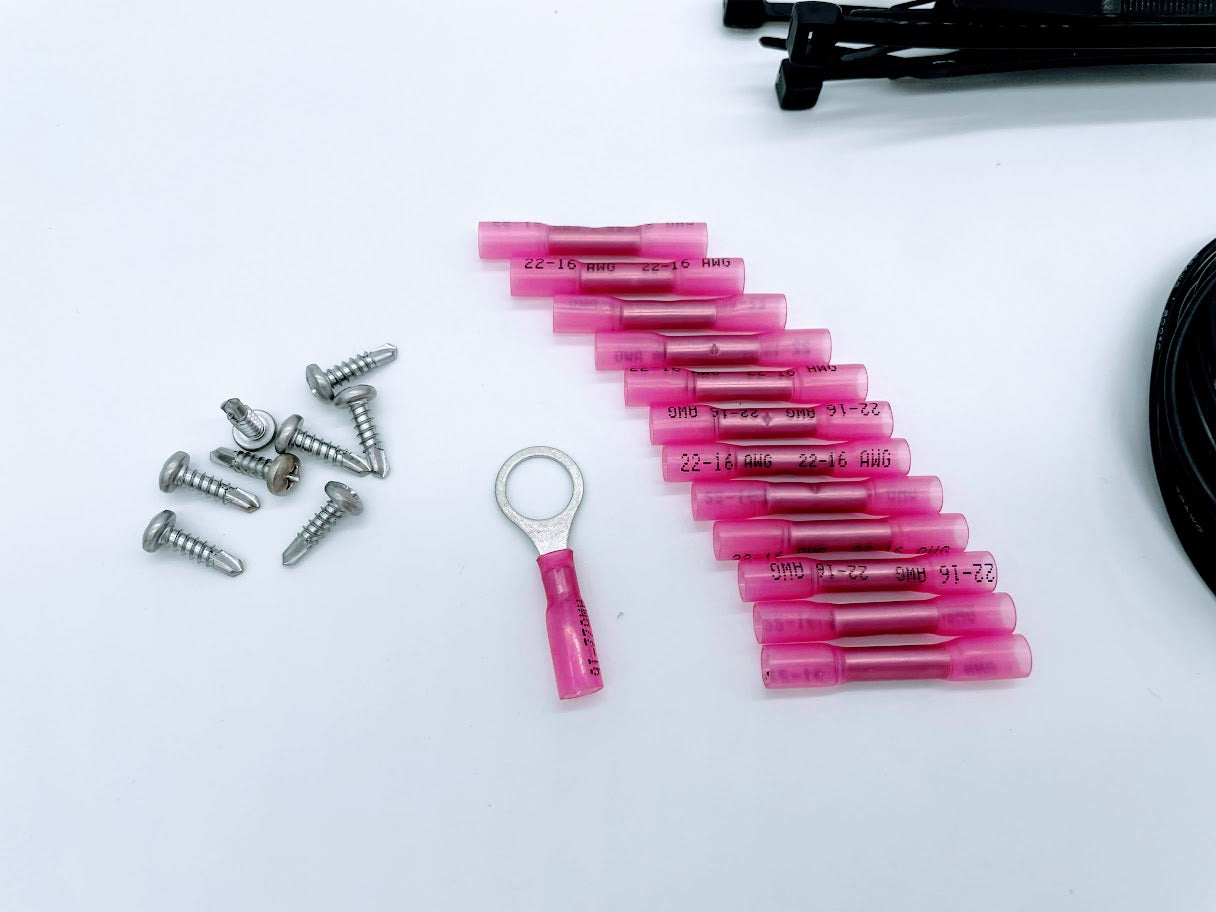

  • CONNECTORS: Assortment of weatherproof butt connectors and ring terminal for ground (apply heat to activate the adhesive lining)
  • HARDWARE: Sheet metal screws, Self drilling, Phillips pan head, Stainless steel 410, #6 x 1/2"
  • MOUNTS: 2x 16" long (24" long for 22" bars) flat aluminum bar stock for easy mounting
  • SUPPORT: DIY, but we're here to help. Ask any question about any make, any model. We're happy to support you the absolute best we can.



  • SYSTEM INPUT: +/- 12V
  • CONNECTIONS: Bare Wire



For a FREE custom international shipping quote contact us:

Phone: 828-508-0917

E-Mail: sparksmith.auto@gmail.com

Customer Reviews

Based on 6 reviews
Tyler Magnussen
Quality products

Extremely satisfied with how these fit on my lml


I have a 2005 1500hd Silverado what fuse type do I need?

Lyon Vaillancourt

These lights add so much to the front of any vehicle and are super easy to install with little to no wiring knowledge

Fuse tap question

Hi, I want to buy these lights to put in my truck, but I’m not sure what type of fuse tap I need to buy? It is a 2005 GMC Sierra.

Your truck will need the ATS style fuse. Thanks!


This installation kit should've just came with the grille lights, instead of buying them separate. making me spend more money then i should've

Thank you for expressing your opinion on the matter. We keep the bars sold separately to give you the choice to buy only what you need. We're happy to work with you on any returns of like-new items that you may want to send back. Just email us at support@sparksmith.com
