03-07 Chevrolet Silverado DRL Grille Light Bars 2.0

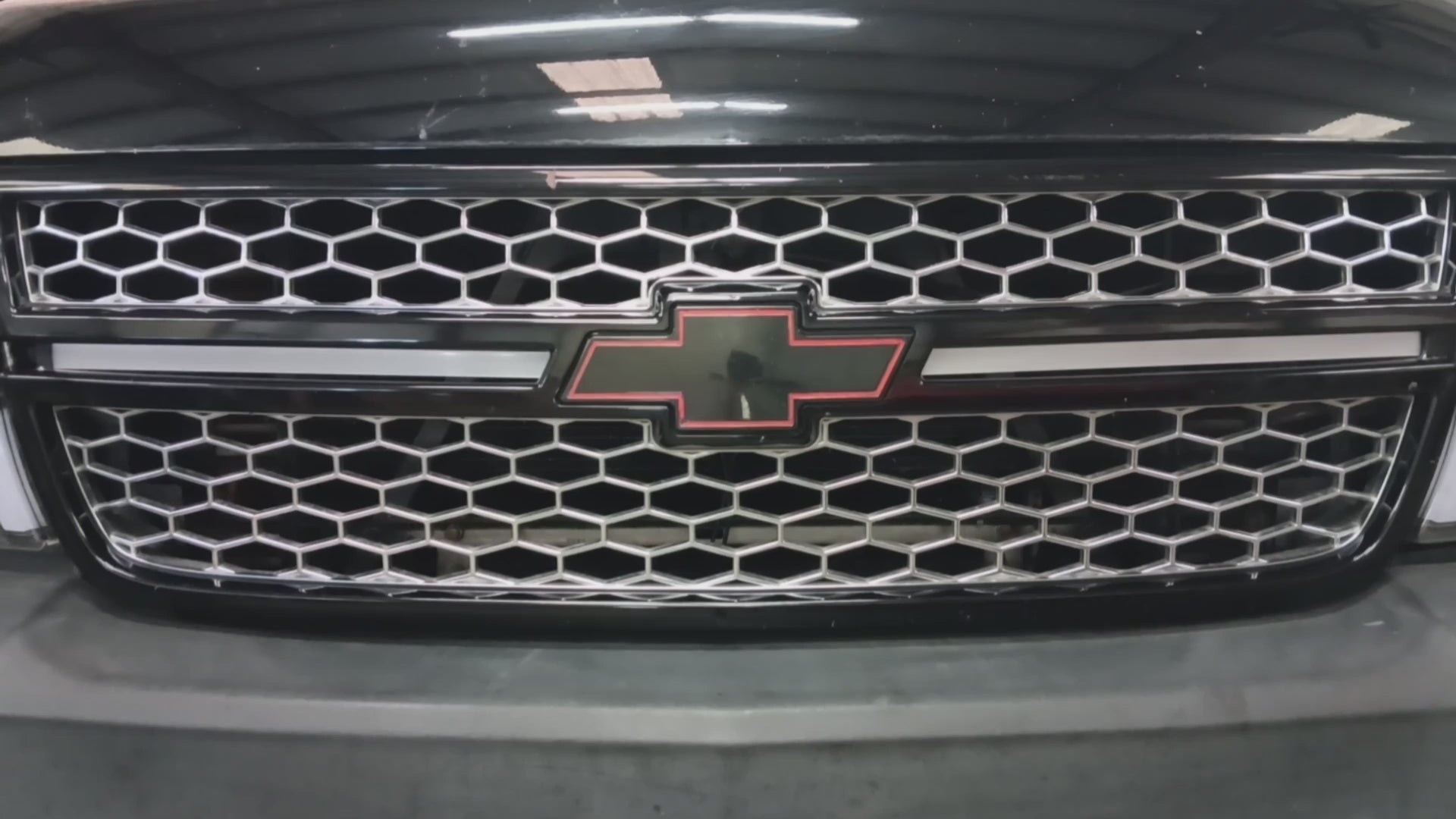

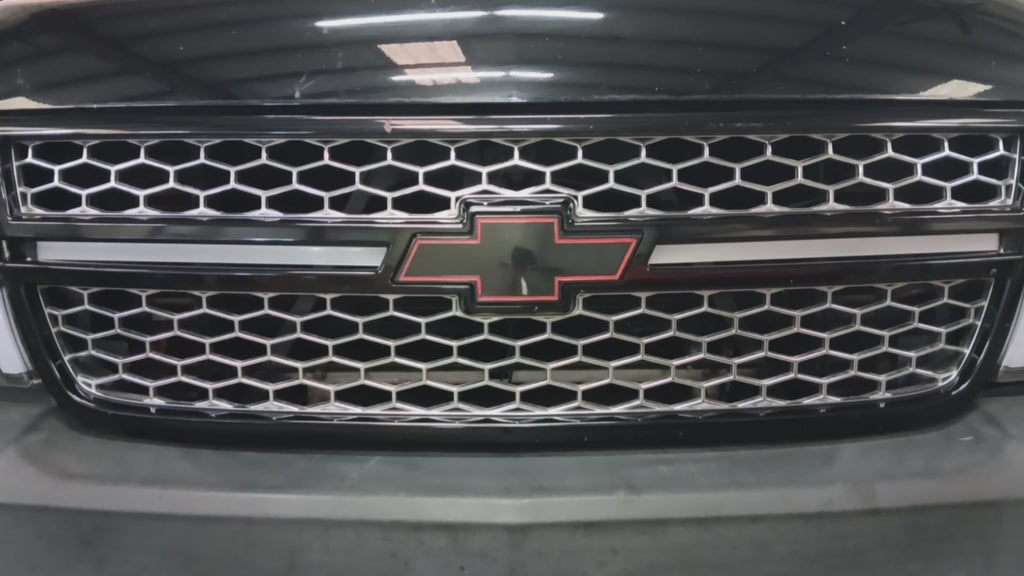

A less expensive alternative to our classic animated/sequential bars, with the same function.  We are able to produce these at a lower cost so we thought, why not make them available while we have them!  See the video clip in the images section for the animated startup and sequential turn function.

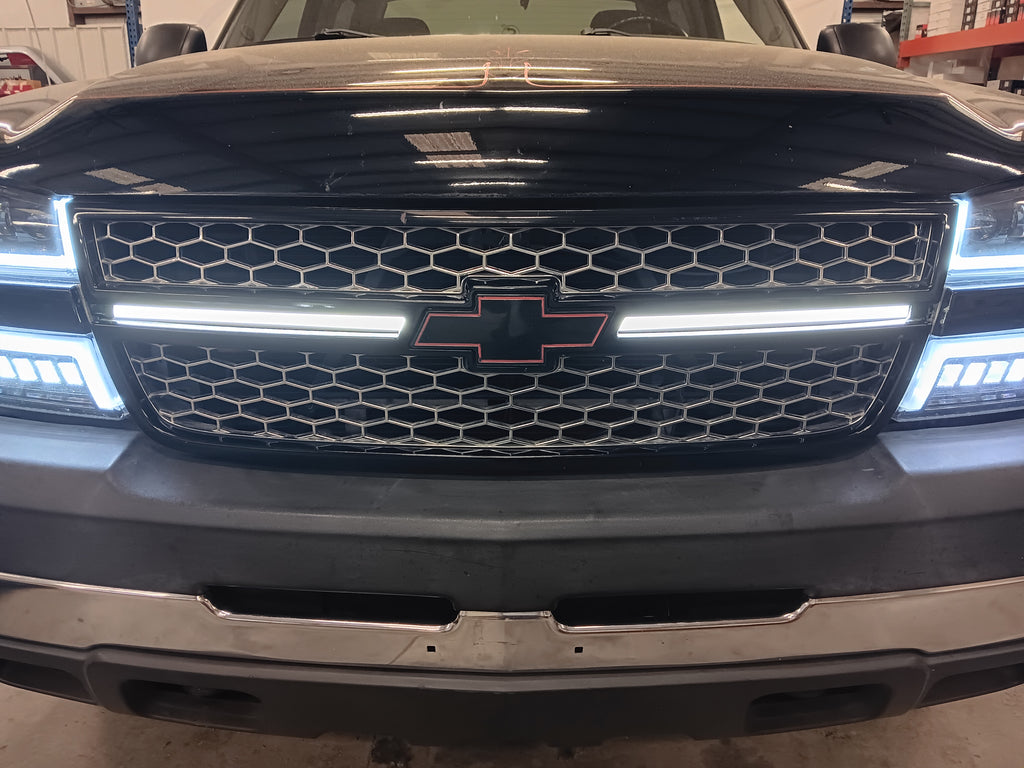

A sharp and eye-catching mod for your 2003-2007 "Cateye" Chevrolet Silverado - DRL Grille Bars! One way to do that is with these incredible DRL grille bars. Your truck already has the wiring for it, why not use it in a much more effective and dynamic way?

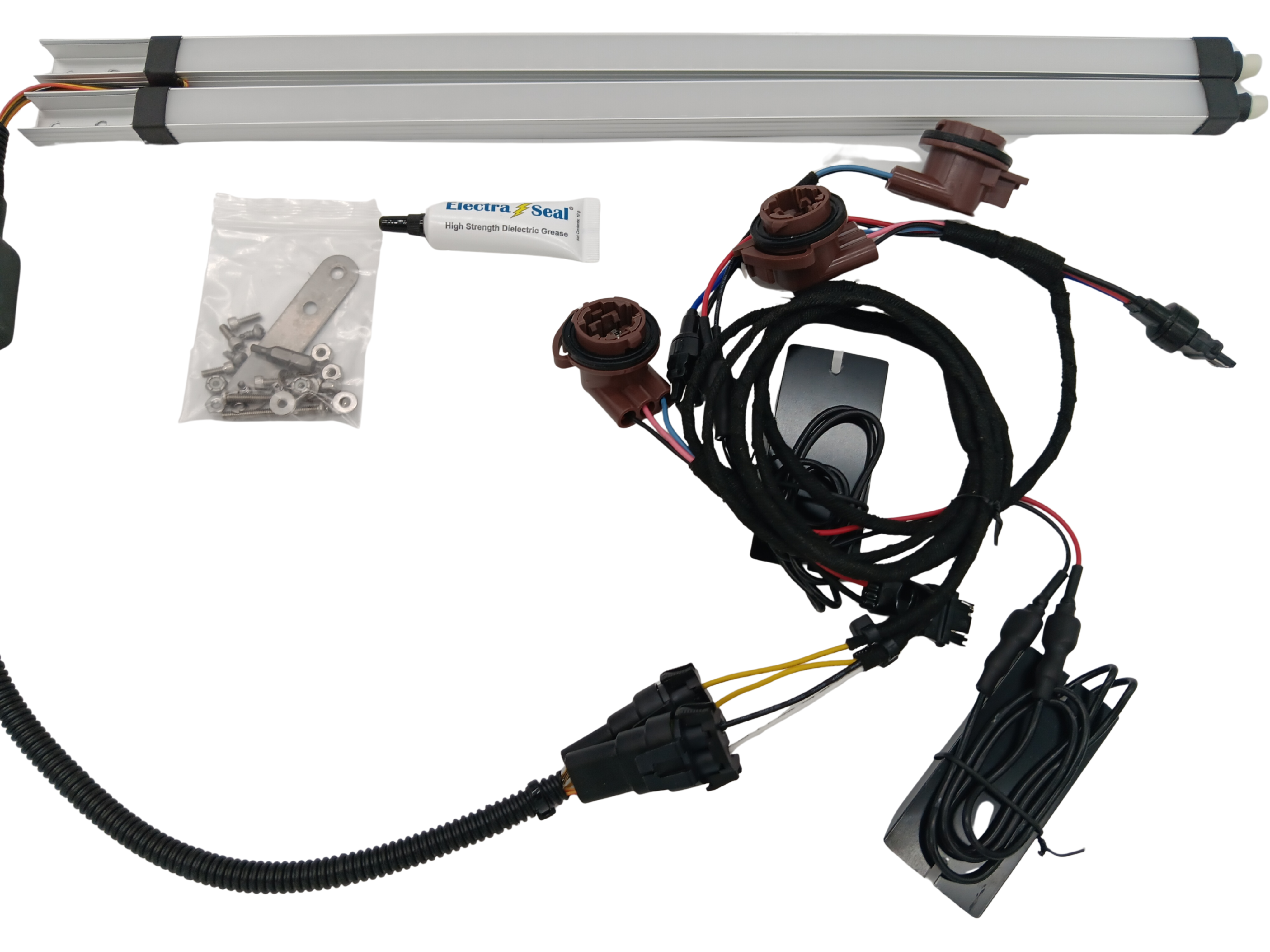

This kit will include two aluminum housings with LED strips.  The bars are joined in the center by a stainless steel connecting bracket and stainless hardware. Mounting holes are pre-drilled for the included #6 stainless screws used to mount the bar to the grille of the truck.

Wiring is a custom, plug and play harness that will work with any 03-07 GMC or Chevrolet truck of this type (GMT800 chassis). The base harness has three 3157 jumpers. Two go to the driver's side (Park/Turn bulb and DRL), the other goes to the passenger side Park/Turn bulb.  Jumpers allow you to continue to run your stock DRL and park/turn signal bulbs.

VERY IMPORTANT: USE THE INCLUDED DIELECTRIC GREASE IN THE WHITE TUBES IN YOUR STOCK SOCKETS. IF YOU DO NOT, THE CONTACTS WILL CORRODE AND THE BAR WILL STOP WORKING. THIS IS NOT COVERED UNDER WARRANTY.

That's it! No cutting, no soldering, no crimping, no modification to your stock wiring, whatsoever. What's even better? We have integrated HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of hyperflash. It really couldn't get any better.

Still have questions? Give us a call, text, email, IG message, or come by and see us!

WHAT'S INCLUDED

• HOUSING: Bolt on

• LED STRIPS: 2x Animated Switchback

• WIRING: Complete Plug & Play harness

• HARDWARE: Stainless steel #6 screws and retaining hardware

• LOAD RESISTORS: 2x Sparksmith HD Load resistors

• WARRANTY: 3 Years

Optional DoubleShot Harness:

Simple plug and play harness that turns your single DRL and single Turn signal bulbs into a Dual bulb setup.  The bulb type available on the listing allows for a White/Amber Switchback (most popular) function.

Wire Harness: 2x Sparksmith Exclusive DoubleShot harnesses with integrated resistors, included as part of the GrilleBar harness.

LED BULBS (OPTIONAL): 2 pairs of 3157 bulbs in standard (Pro) or Signature Series (MAXX)

*Note: You will need four switchback bulbs in the Park/Turn sockets to run this harness as intended

COMPATIBILITY

• CHEVY SILVERADO: 2003 - 2007 (Classic) - MUST HAVE SPLIT STYLE (HD or SS) GRILLE

• SYSTEM INPUT: +/- 12V

• CONNECTIONS: 3157

TECH SPECS

• PRIMARY FUNCTION: White or RGB

• SECONDARY: Sequential Switchback (Switchback and Animated Startup bars only)

• LIGHT SOURCE: Proprietary 2835 SMD LED

• EXPECTED LIFESPAN: 50,000 hours

• PCB WIDTH: 7mm

• PCB THICKNESS: 1.6mm

• DRIVER HOUSING: Anodized Aluminum

• DRIVER PROTECTION: Full internal Potting

• COLOR WHEN OFF: Neutral White
