Magnetic Mount Dual DRL Bars
For OE Bumper Openings
Here at Sparksmith, we are looking to expand the line of bolt on lighting accessories available for the GMT800 chassis trucks. One way to do that is with these incredible DRL grille bars. Your truck already has the wiring for it, why not use it in a much more effective and dynamic way?
WIRING - READ THIS!
STARTING FROM SCRATCH: Be sure to get the optional Plug & Play wiring harness.
ALREADY HAVE THE GRILLEBAR & HARNESS: Opt for the dual 9006 splitters and you can plug right into your existing Plug & Play harness

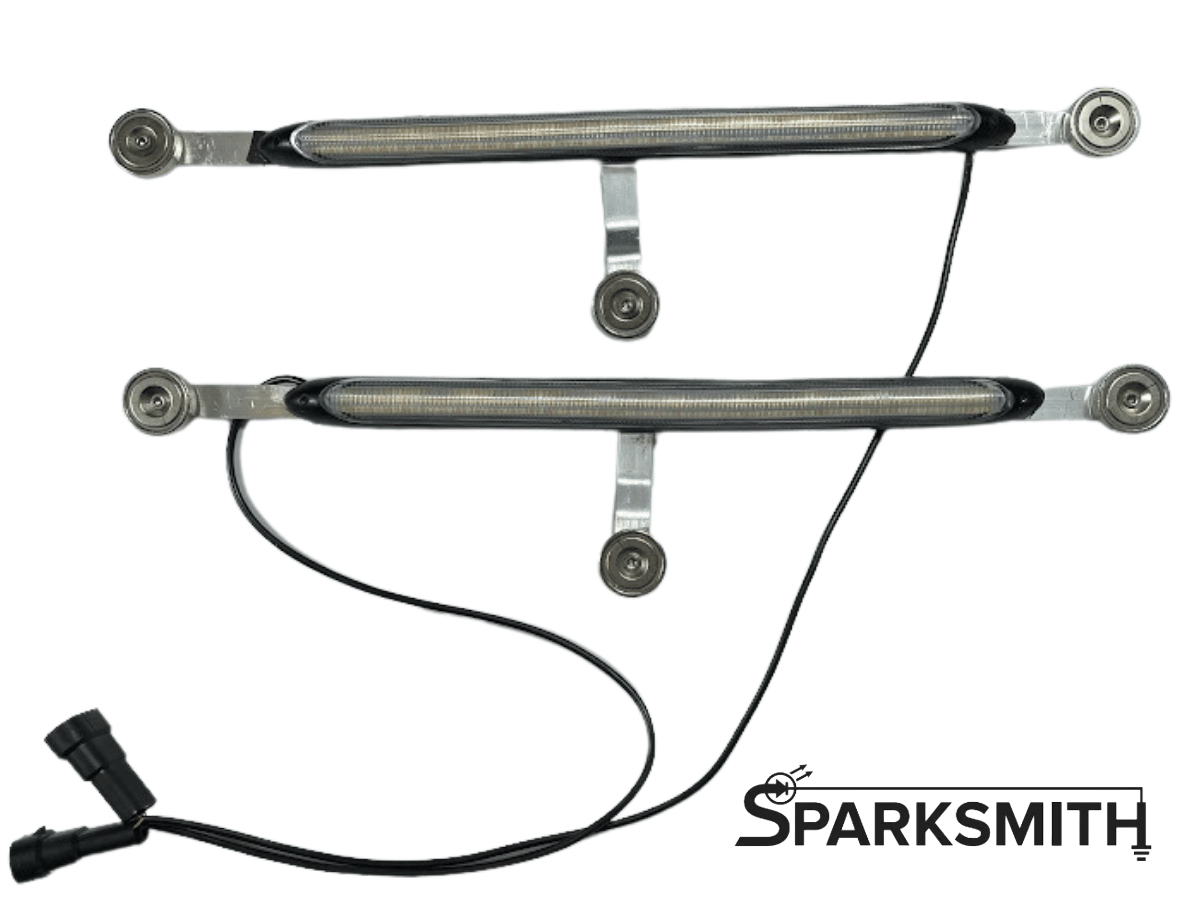

DIY TYPE OF GUY: We get it, sometimes you like to tackle this yourself. Or maybe you have a custom setup. Choose none for wiring and you'll get the bars pictured with dual 9006 Male inputs that you can connect however you'd like.
The optional Plug & Play wiring harness will work with any 99-07 GMC or Chevrolet truck of this type (GMT800 chassis). The base harness has three 3157 jumpers. Two go to the driver's side (Park/Turn bulb and DRL), the other goes to the passenger side Park/Turn bulb. Jumpers allow you to continue to run your stock DRL and park/turn signal bulbs.

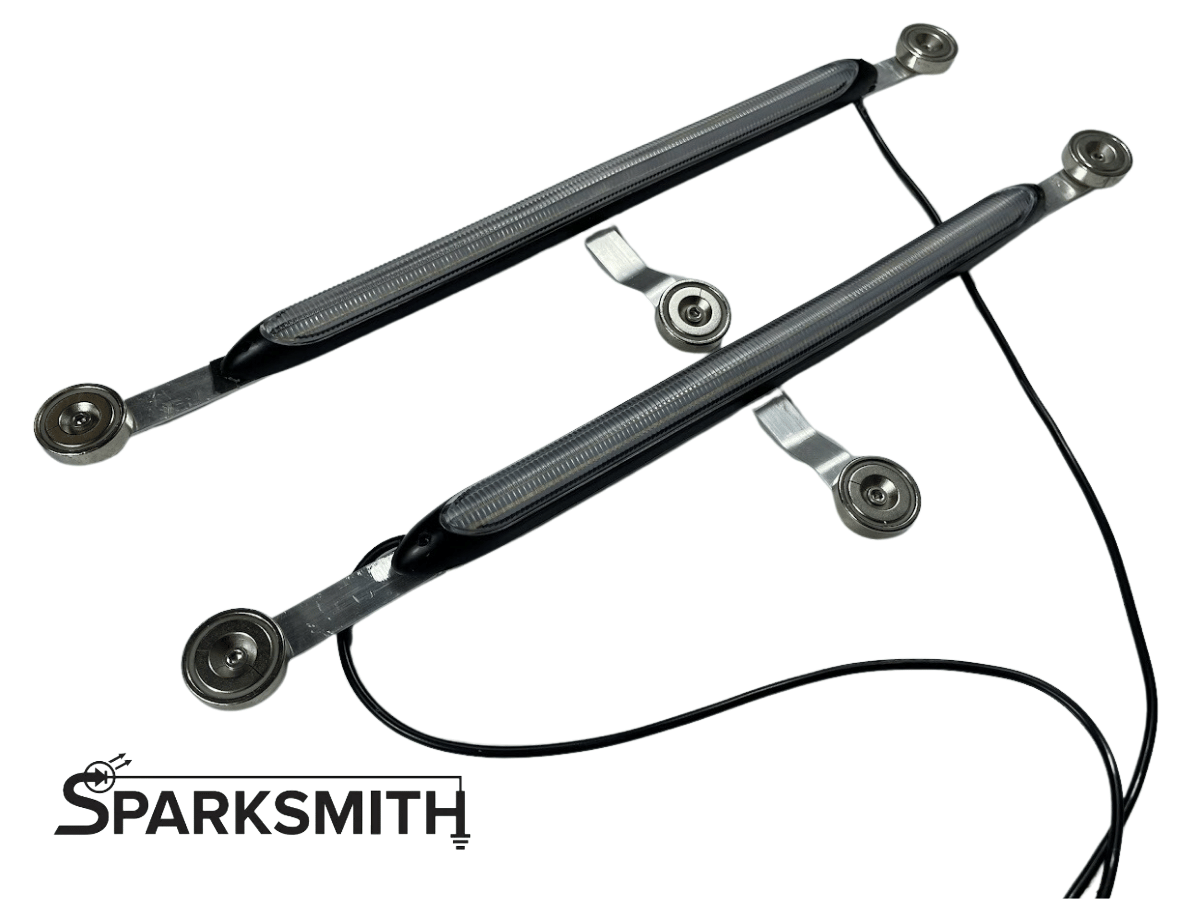

Mounting the bars could not be easier. Our 11" animated DRL bars are mounted to handmade aluminum brackets with three 40 pound pull Neodymium magnets. Slide them into the factory openings and they'll latch into place. These babies aren't going anywhere.
VERY IMPORTANT: USE THE INCLUDED DIELECTRIC GREASE IN YOUR STOCK SOCKETS. IF YOU DO NOT, THE CONTACTS WILL CORRODE AND THE BAR WILL STOP WORKING. THIS IS NOT COVERED UNDER WARRANTY.
That's it! No cutting, no soldering, no crimping, no modification to your stock wiring, whatsoever. What's even better? We have integrated HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of hyperflash. It really couldn't get any better.
- LED STRIPS: 2x 11" Animated Switchback
- WIRING: Plug & Play Harness (optional), 9006 Splitters (optional)
- LOAD RESISTORS: 2x Sparksmith HD Load Resistors (included with harness only)
- HARDWARE: Mag-mount Aluminum Brackets
- WARRANTY: 3 Years
- CHEVY SILVERADO: 1999 - 2007 Classic
- CHEVY TAHOE: 1999 - 2007 Classic
- CHEVY SUBURBAN: 2000 - 2006
- GMC YUKON: 1999-2007
- SYSTEM INPUT: +/- 12V
- CONNECTIONS: 3157
- PRIMARY FUNCTION: White
- SECONDARY: Sequential Switchback
- LIGHT SOURCE: Proprietary 2835 SMD LED
- EXPECTED LIFESPAN: 50,000 hours
- WIDTH: 11"
- THICKNESS: 3/4" (19mm)
- DEPTH: 1/2" (12mm)
- COLOR WHEN OFF: Neutral White
99-07 Cadillac, GMC & Chevy Truck DRL Grille Bars (Fits ANY Sierra, Silverado, Tahoe, Suburban, Denali, Yukon, Escalade)
