Chevrolet / GMC 1500 Dynamic LED Headlight Adapter (2022-2025)

Sold Individually - One adapter gives access to left and right turn signals!

Features and Benefits:

• Provides access to Parking Light & Turn Signal circuits with no cutting or splicing required!
• Connected accessories will be powered anytime the Parking Light circuit is powered on the headlight.
• Turn Signal circuit can be used to activate accent light indicators.
• Best way to power 12v grille lights, accent lights or backlights found on LED Light Bars/ Pods. Can also be used as a relay trigger.
• Easy installation – just plug the new adapter into your existing factory connector.
• Only OEM components are used – don’t settle for anything less!
• Assembled in USA!

What’s Included:

• One 6-inch adapter with weatherproof connectors
• 3M Quick Connects
• 5 Year Warranty

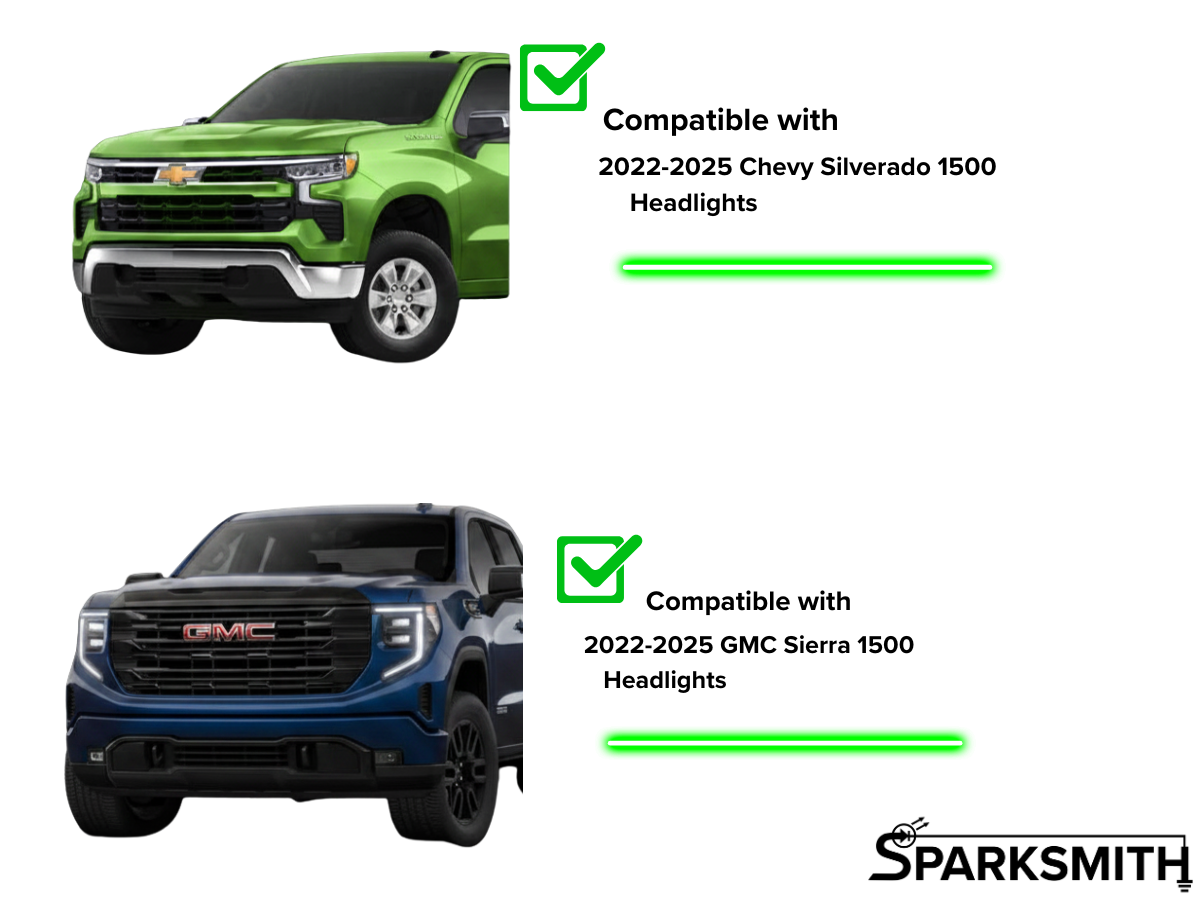

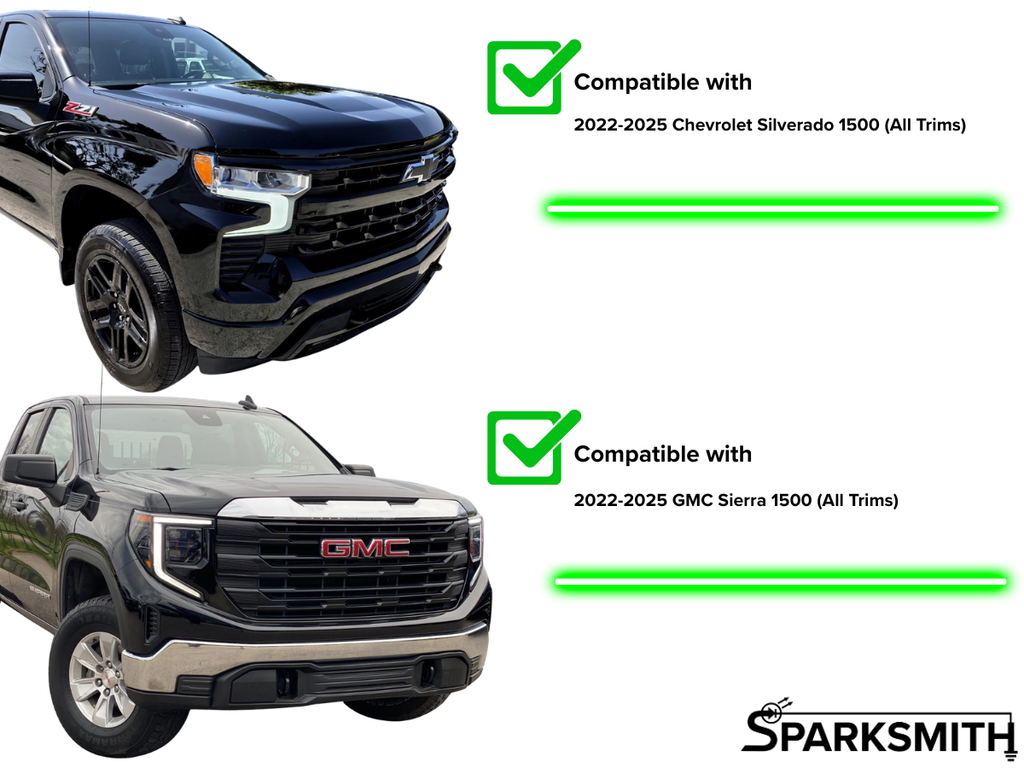

Compatibility:

• 2022-2025 Chevrolet Silverado 1500 (All Trims)**
• 2022-2025 GMC Sierra 1500 (All Trims)**

Circuits Provided:

• Parking
• DRL
• Left Turn Signal
• Right Turn Signal
• Ground

Technical Specifications:

• Max Continuous Amp Draw: 2
• For 12v Systems

Looking for a way to connect accessories such as grille-mounted marker lights or backlit LED Pods seamlessly to your 2022+ 1500/2500/3500 Headlight circuits? This adapter allows complete Plug-and-Play operation and is compatible with SELECT 2022+ 1500/2500/3500 trucks – See Compatibility chart above to make sure your truck is supported.

*Note: The Turn Signal output only provides power for the headlight the adapter is connected to. If you need outputs for both Left and Right, an adapter for each headlight is needed.

**Note: For the 2022 model year, Chevrolet/GMC each produced two body styles for the 1500 trucks. This adapter will only work with the New body style (aka Refreshed) trim. If you have the Limited (aka LTD) trim, please see SKU #20334
