SS3 LED Fog Light Kit for 2018-2021 Jeep JL Wrangler

$200.00
  • Availability: In Stock

What's Included In the Box: Plastic Bumper, Sport (Type MS Kit) Two (2) SS3 3” Round LED Pods Two (2) Type MS Mounting Brackets Two (2) 5202 DT Adapters Hardware Plastic Bumper, Non-Sport (Type M Kit) Two (2) SS3 3” Round LED Pods Two (2) Plastic Type M Mounting Brackets Two (2) 9006 DT Adapters Two (2) 5202 DT Adapters Hardware Steel... Read More

What's Included

In the Box:

Plastic Bumper, Sport (Type MS Kit)

  • Two (2) SS3 3” Round LED Pods
  • Two (2) Type MS Mounting Brackets
  • Two (2) 5202 DT Adapters
  • Hardware

Plastic Bumper, Non-Sport (Type M Kit)

  • Two (2) SS3 3” Round LED Pods
  • Two (2) Plastic Type M Mounting Brackets
  • Two (2) 9006 DT Adapters
  • Two (2) 5202 DT Adapters
  • Hardware

Steel Bumper (Type MR Kit)

  • Two (2) SS3 3” Round LED Pods
  • Two (2) Plastic Type M Base Mounting Brackets
  • Two (2) Steel Type MR Mounting Brackets
  • Two (2) 9006 DT Adapters
  • Two (2) 5202 DT Adapters
  • Hardware
Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

Fitment

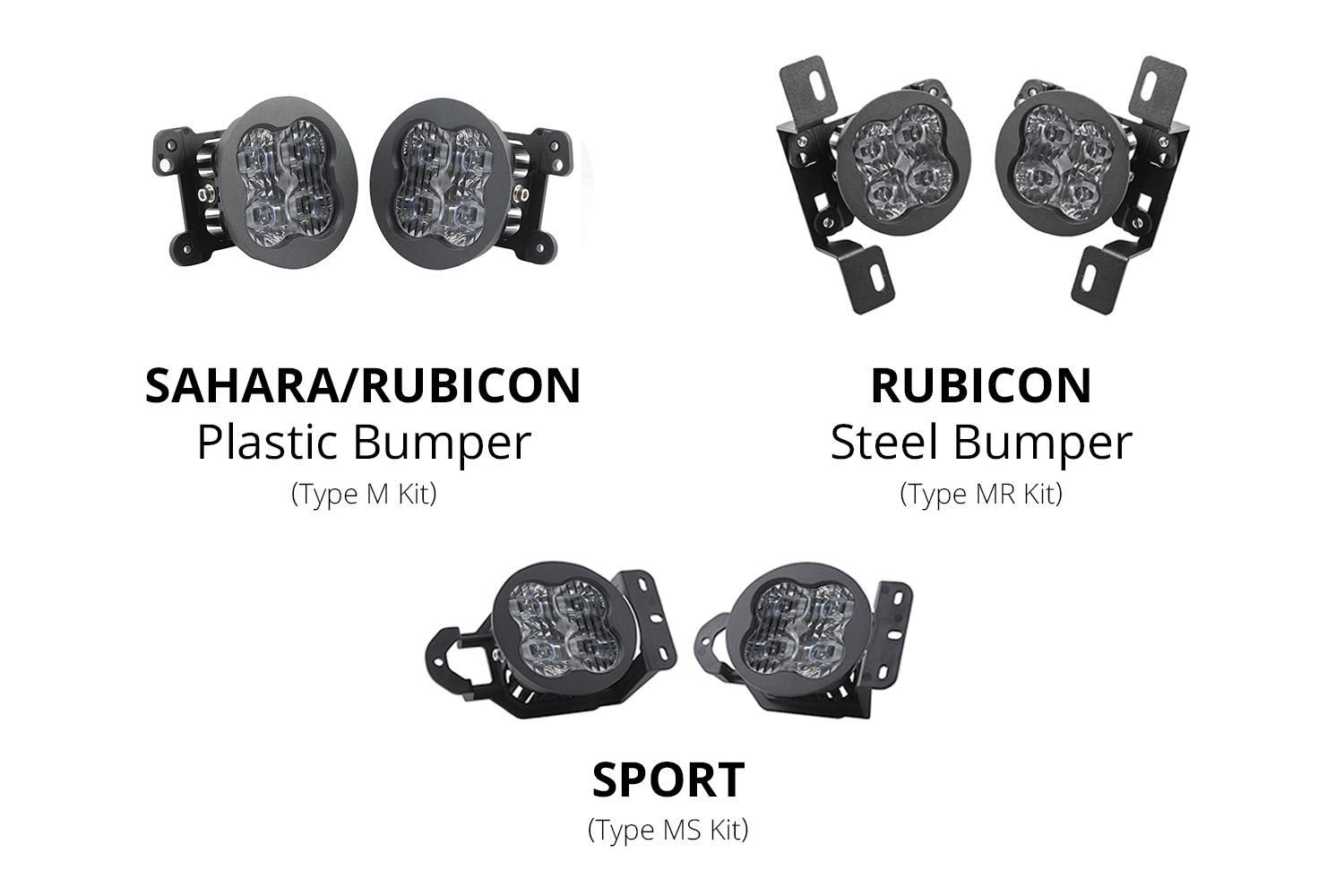

NOTE: See below to determine which kit will fit your vehicle:

  • Plastic Bumper (Sport): Compatible with Sport trim levels.
  • Plastic Bumper (Non-Sport): Compatible with Sahara, and Rubicon trim levels that have a plastic bumper.
  • Steel Bumper: Compatible with Rubicon trim levels that have a steel bumper.

This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

Application: Fog Light
Make: Jeep
Model: JL Wrangler
Years: 2018, 2019, 2020, 2021


Product Description:

  • Direct replacement for Jeep JL Wrangler fog lamps
  • SAE-compliant road-legal output

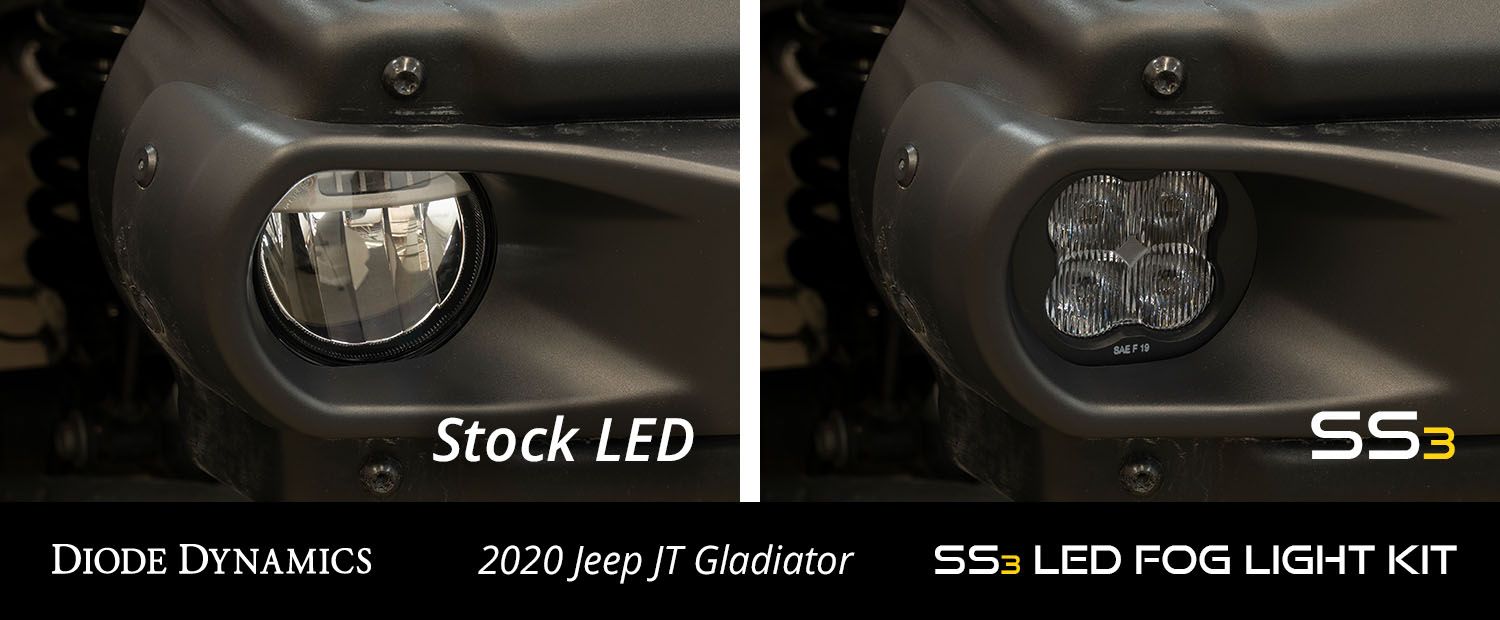

  • Includes round bezel, for factory-style appearance
  • Plug and play, no modification needed
  • Advanced TIR optics provide high efficiency and focus
  • Durable powdercoated aluminum die-cast
  • Engineered and Assembled in USA

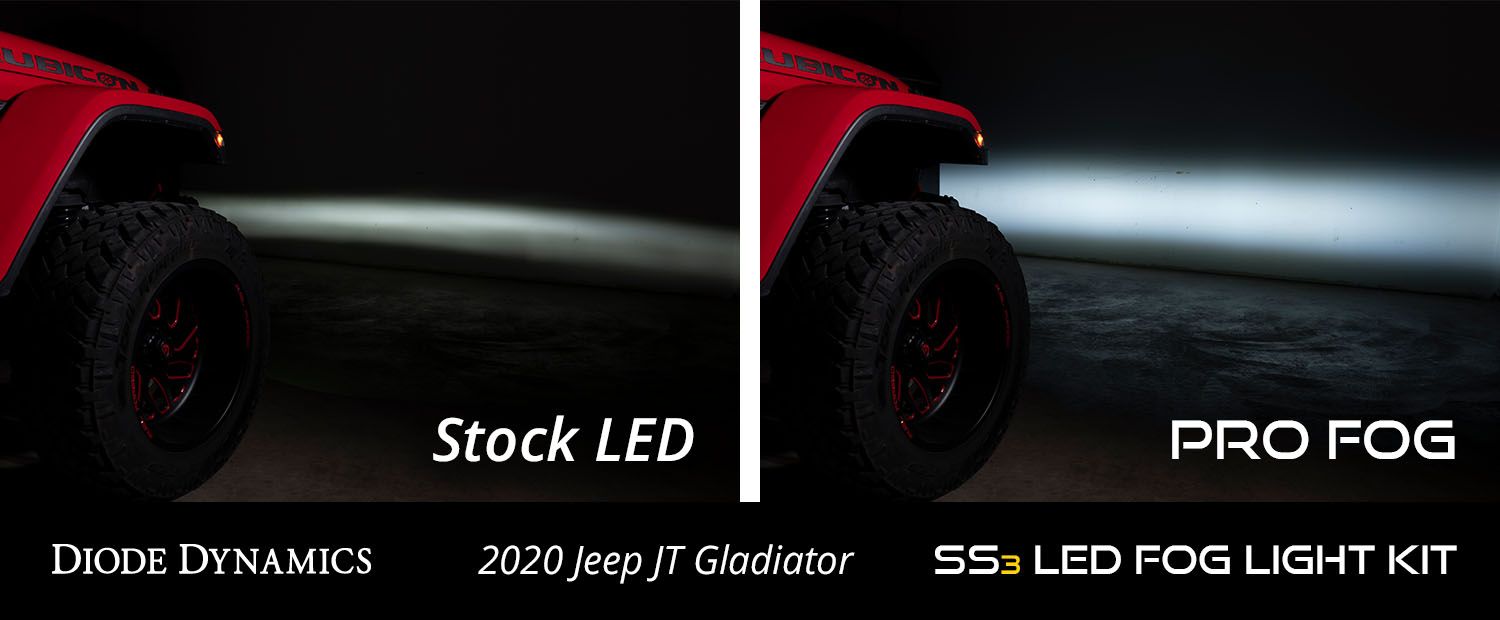

S3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your Jeep JL Wrangler in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

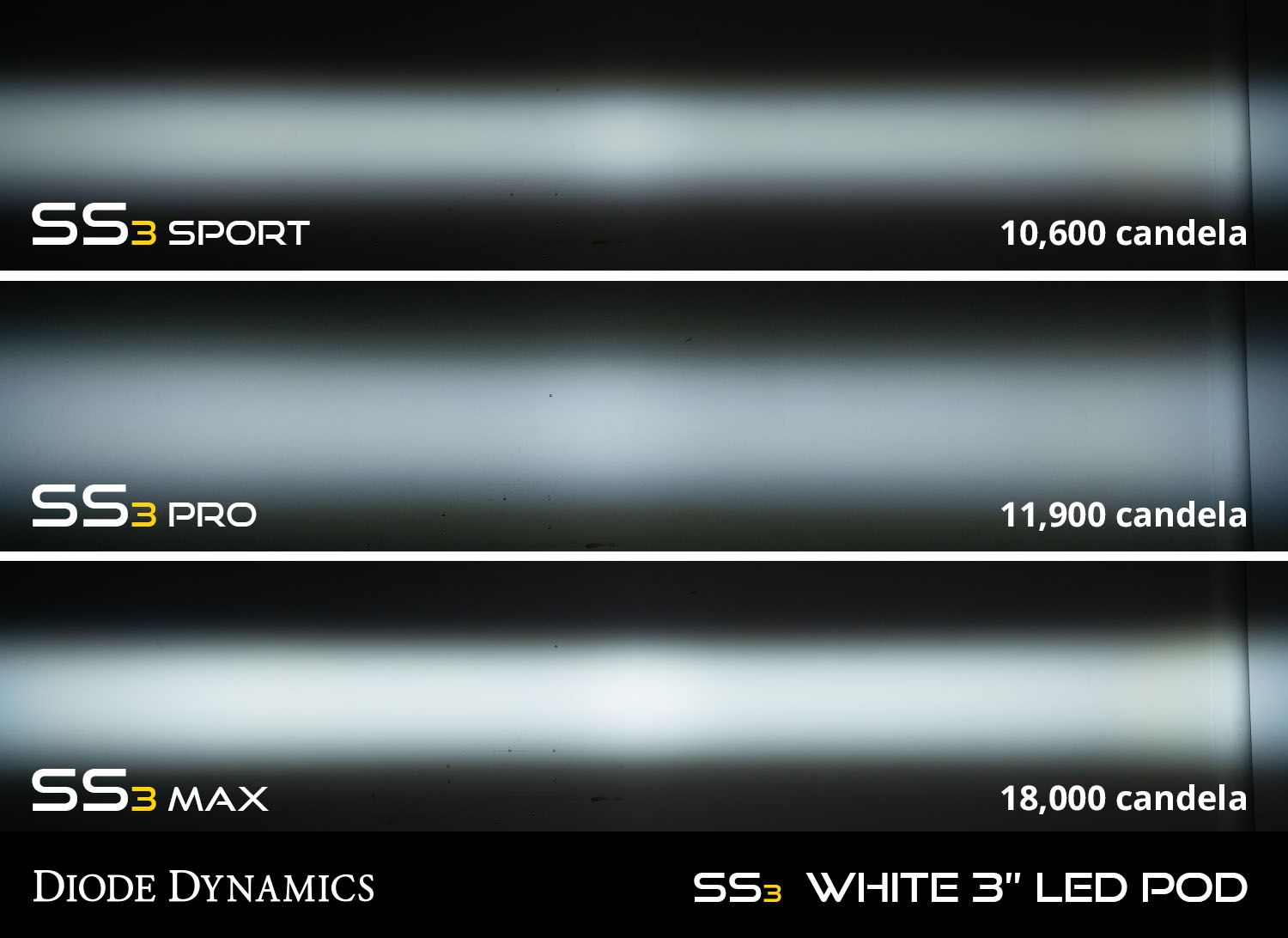

SS3 Beam Patterns

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.
