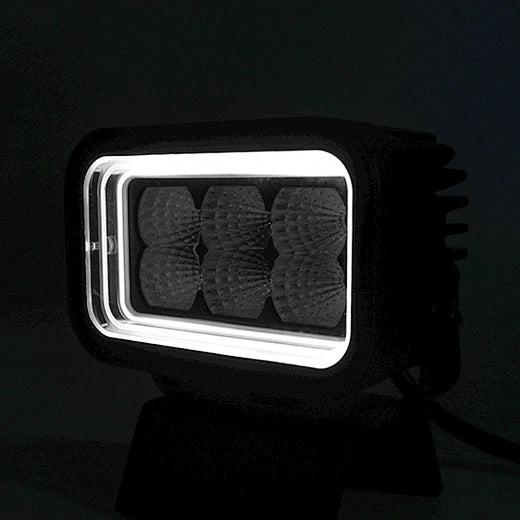

Shark-Lite Series Offroad LED Flood Light w/ Switchback DRL (sold individually)

PRODUCT DETAILS

Here at Sparksmith, we are looking to expand the line of bolt on lighting accessories for your ride. One way to do that is with this high-powered LED Flood Light.

This kit will include one Universal LED Pod with integrated drivers. Just choose the size that best fits your application.

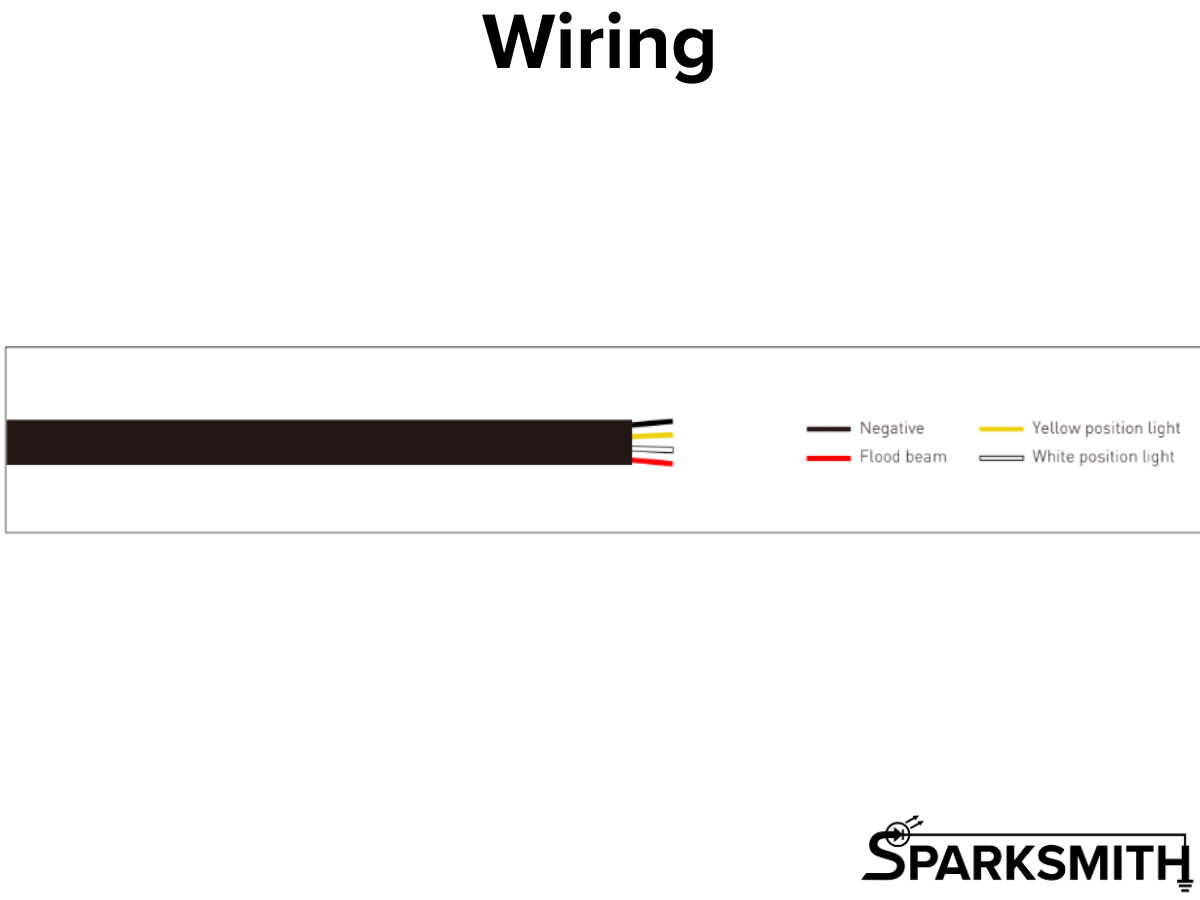

Wiring is simple. Ground the black wire to the nearest body ground. Splice the red wire to a switched 12V source, white wire to running lights, and splice the yellow to your factory turn signal. That's it! Nervous about cutting and splicing? Check out our How-To video to help put your mind at ease. Still not ready to make the cut, ask us for help. We're happy to provide specific guidance for your exact application. Right down to the wire!

Still have questions? Give us a call, text, email, IG message, or come by and see us!

WHAT'S INCLUDED

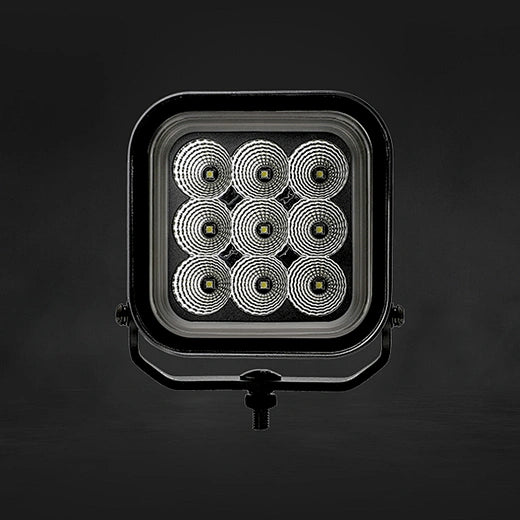

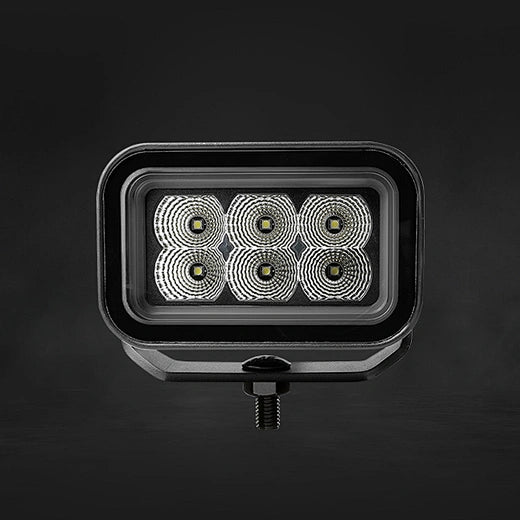

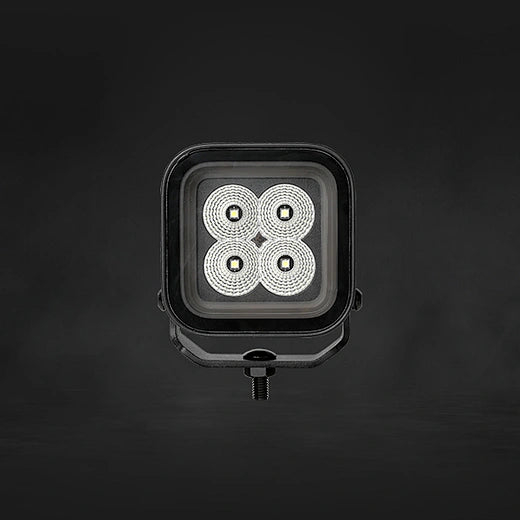

• LED POD: 1x 4-, 6-, or 9-LED Pod
• WIRING: Universal (bare wire inputs)
• HARDWARE: Black Powder Coated Aluminum
• WARRANTY: 2 Years
• SUPPORT: DIY, but we're here to help. Ask any question about any make, any model. We're happy to support you the absolute best we can.

COMPATIBILITY

• ANY 12VDC SYSTEM
• SYSTEM INPUT: +/- 12V
• CONNECTIONS: Bare Wire

TECH SPECS

• PRIMARY FUNCTION: White Flood Work Light

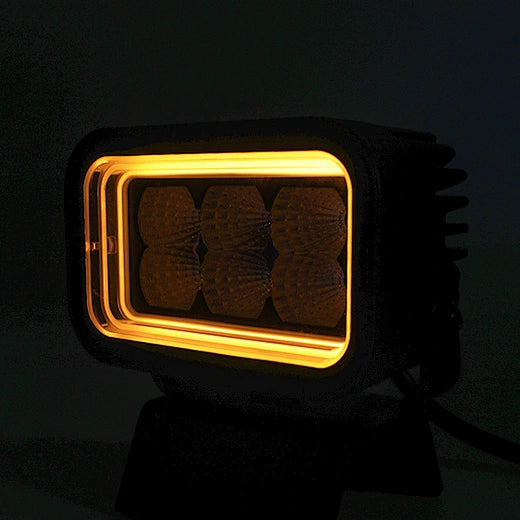

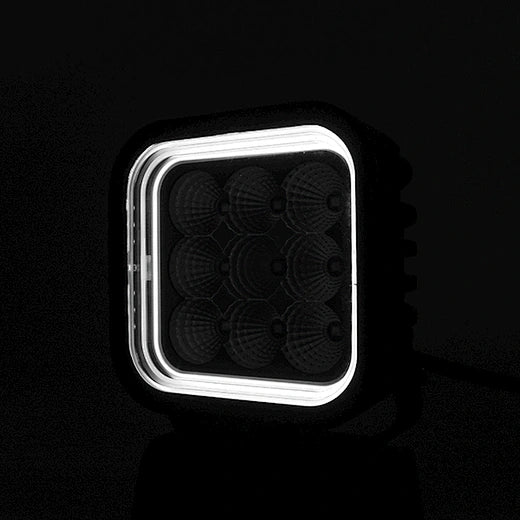

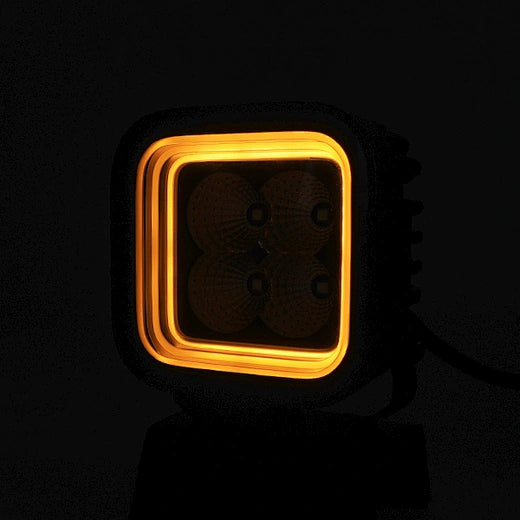

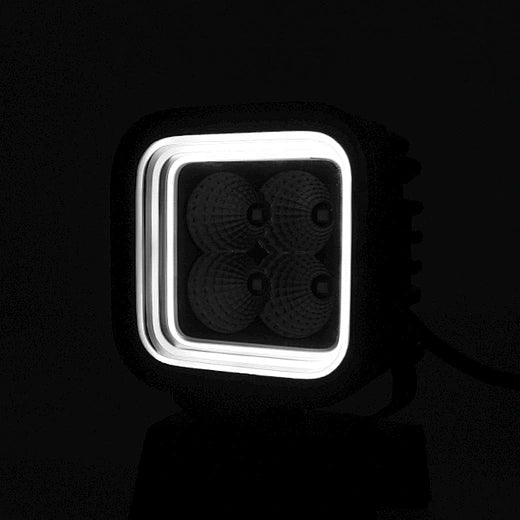

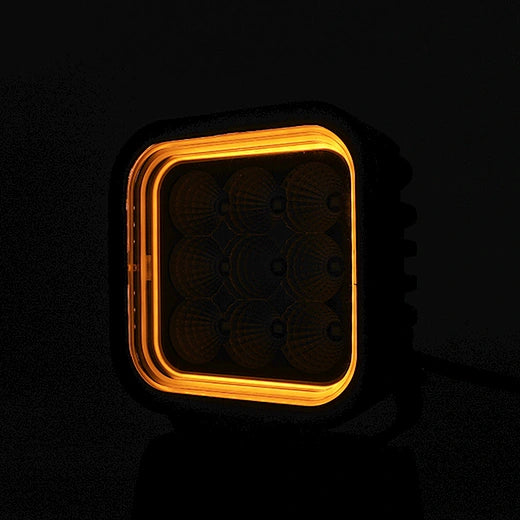

• SECONDARY: White and Amber Running Lights
• EXPECTED LIFESPAN: 50,000 hours

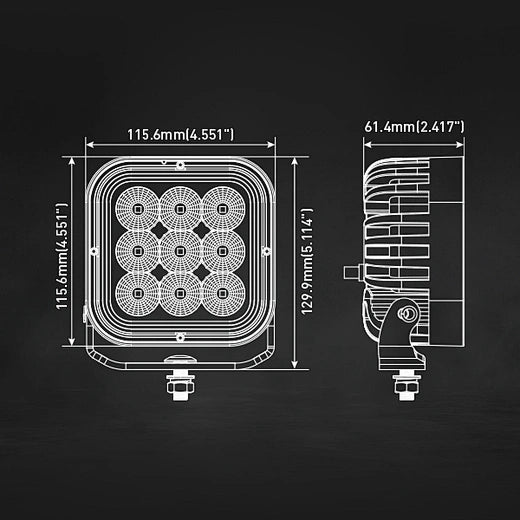

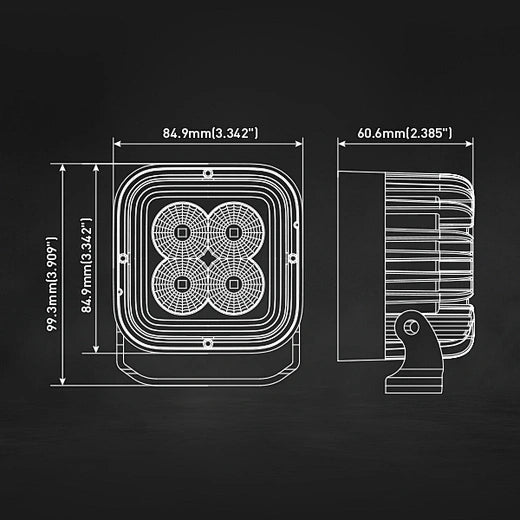

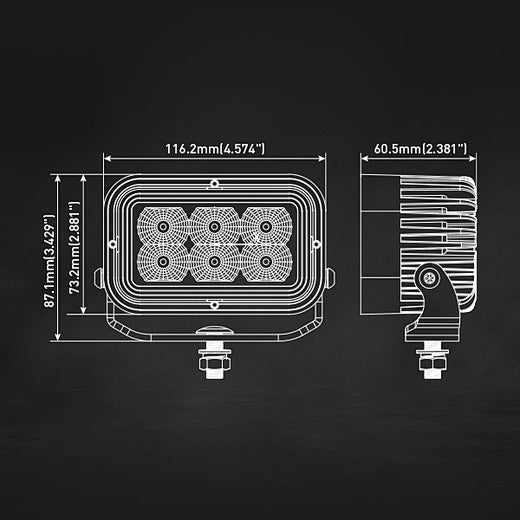

• LENGTH: 3-4"
• WIDTH: 3-4"

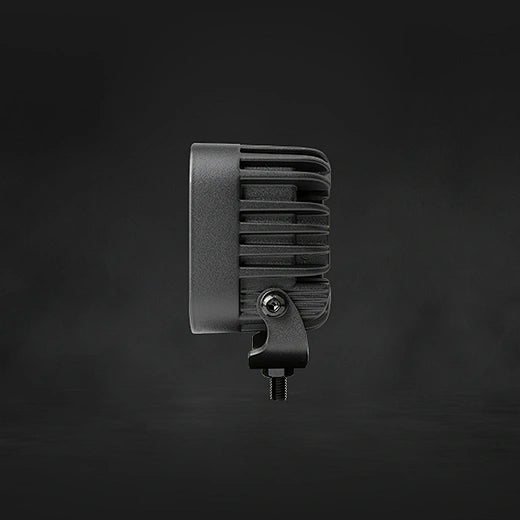

• HOUSING: Cast Aluminum
• VOLTAGE: 10-30VDC

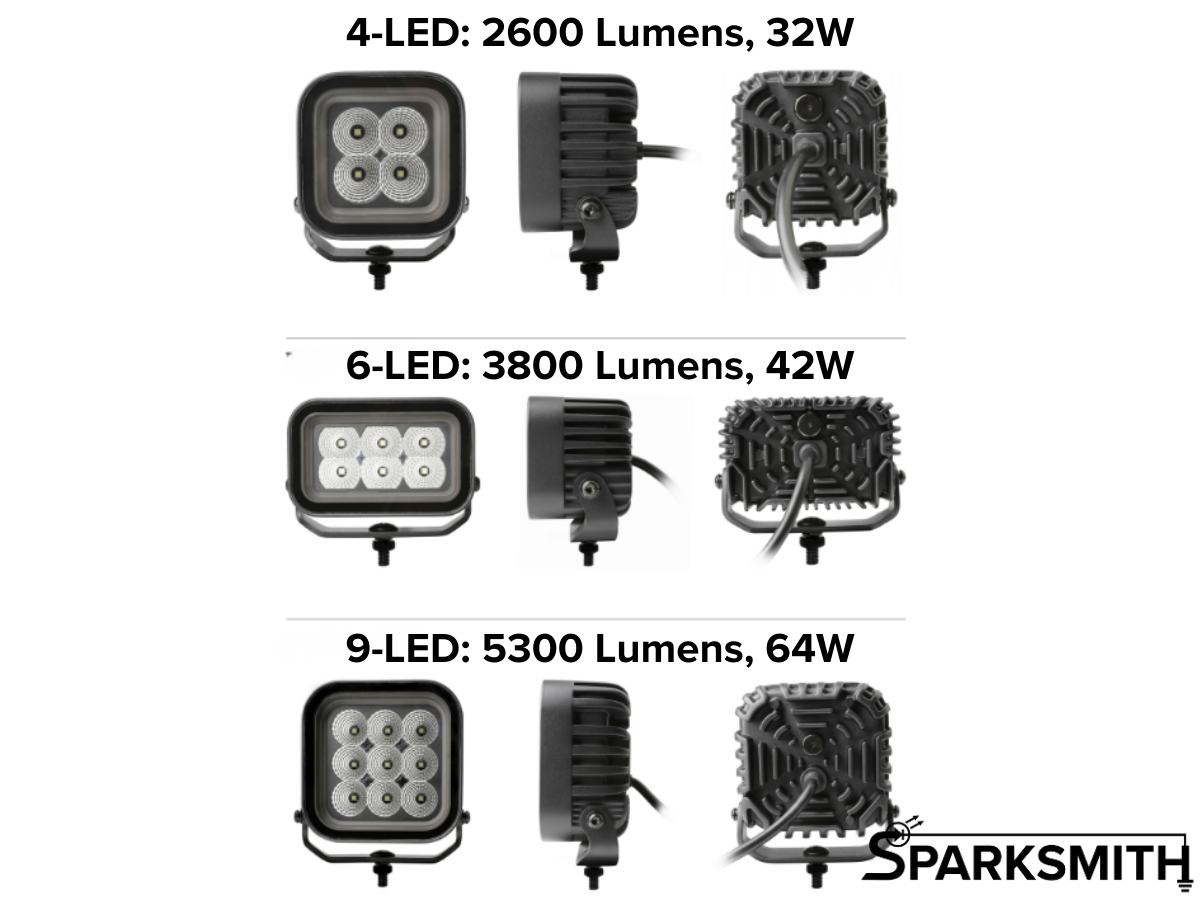

• POWER (actual, W) @ 13.5V:  4LED-32W, 6LED-42W, 9LED-64W
• LUMENS (Lm): 4LED-2600Lm, 6LED-3800Lm, 9LED-5300Lm

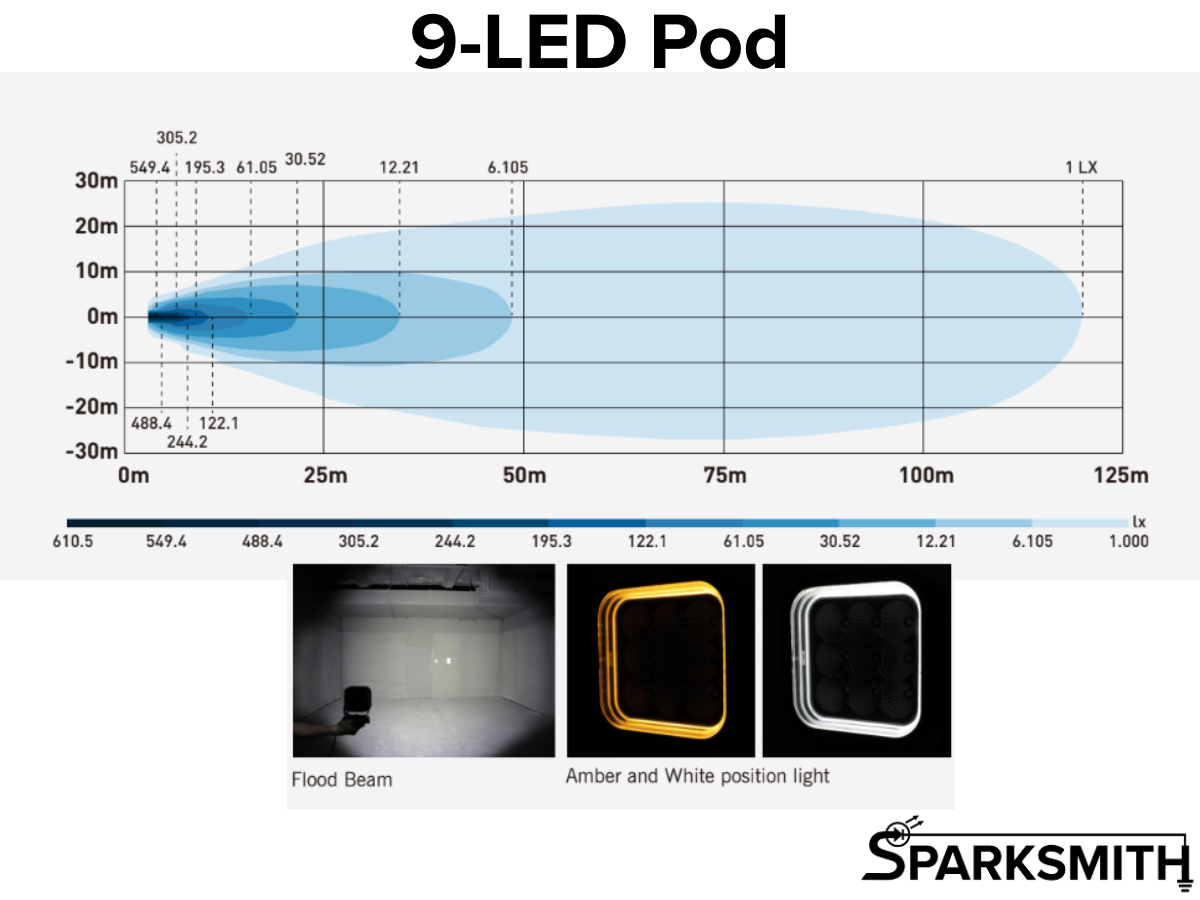

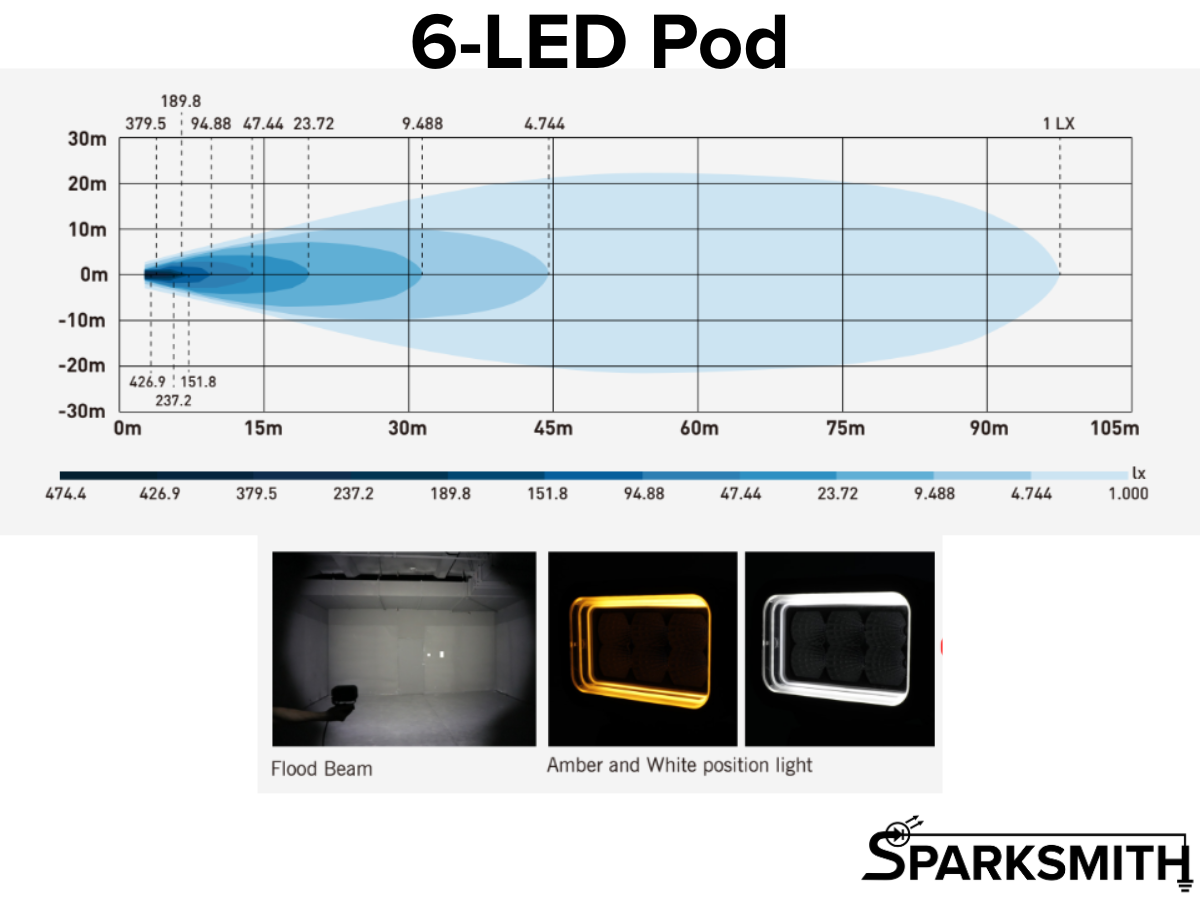

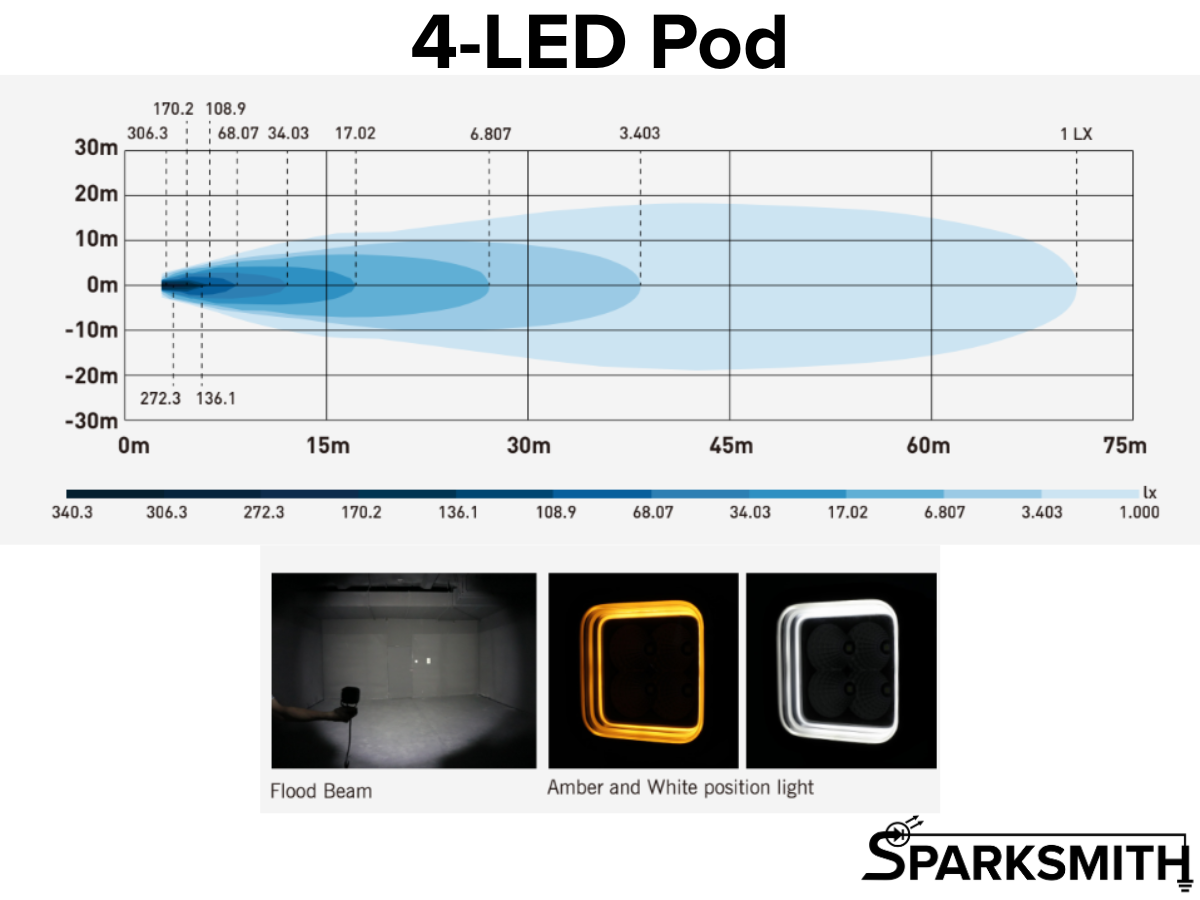

• 1 lux @ (m) 4LED-1 LUX@70M, 6LED-1LUX@90M, 9LED-1LUX@120M
• OUTPUT COLOR (K): 6000-6500K
• BEAM PATTERN: FLOOD
• CABLE LENGTH: 30-35CM
• BRACKET: Powder Coated Aluminum
• Lens: Polycarbonate
• operating temp: -40 to +60C (-40 to +140F)
• WARRANTY: 2 Years
