- RESISTORS: 2x Sparksmith HD Load Resistor
- CONNECTORS: 4x Heat Shrink Butt Connectors
- HARDWARE: 4x #6 x ½” Self Drilling Philips Screws
- WARRANTY: 2 Years
- LED HYPERFLASH: Yes
- EURO CANBUS SYSTEMS: Yes
- OTHER CANBUS SYSTEMS: Yes
- 15+ MOPAR CANBUS SYSTEMS: Yes
- WATTAGE: 50W
- RESISTANCE: 7.5 ohms
- INPUT: Male Spade
- OUTPUT: Nickel-Plated Ring Terminal Type
- WIRING: 14ga High-Temp
- SHELL MATERIAL: Extruded Aluminum
- FINISH: Anodized/Laser Engraved
The resistors are to be wired with one lead in the ground wire, and the other lead in the turn signal wire (not the positive).

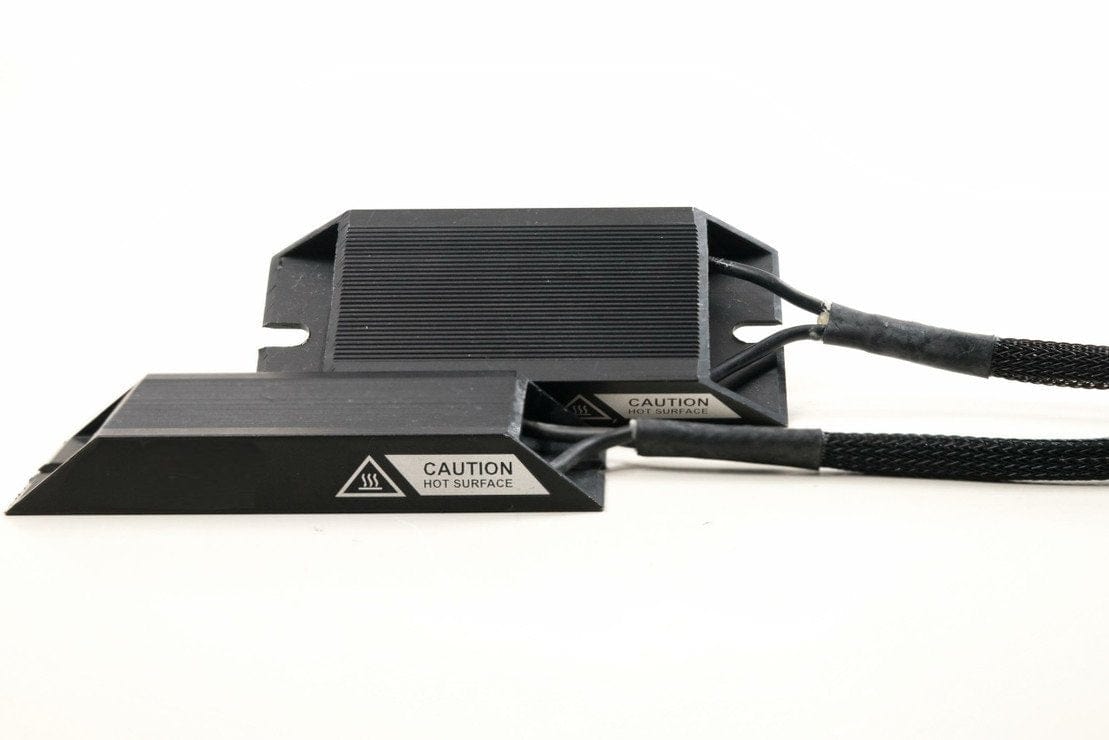

7.5 OHM 50W LOAD RESISTORS: Load resistors are regularly required in many vehicles to fix the dreaded 'Lamp Out' warning light on the dash, or the annoying hyper-flash after changing out the stock bulbs to LED or HID. LED and HID lighting upgrades typically draw less power then OEM incandescent or halogen bulbs, which makes your vehicle think that there's a problem--hence the error code.
MORE TECH INFO: Our 7.5-Ohm 50W (1% tolerance) ceramic load resistors simulate 7.5-ohms at 50W, and are designed to trick your vehicle and fix draw related issues. You'll find lower priced options out there (commonly gold aluminum resistors) that basically accomplish the same task, but they heat up to unsafe +430F temperatures! Our ceramic 7.5-Ohm resistors only get half as hot!
WATERTIGHT: Aside from being safer to use, our ceramic 7.5-Ohm resistors are weather tight and completely sealed from the elements. Eight inches of wiring makes finding an installation location easy. They will still get hot, and should be mounted away from plastic or other wiring. They're just not nearly as hot as lower priced alternatives. At the end of the wiring, you'll find male spade connectors that can be used to connect to a female spade terminal (not included) or you can use the included heat shrink butt connectors to splice into your factory wiring.
Had to install these low profile resistors in a tight area and needed the cooler operating temp because it was a tight area. They created a good fit and finish to the new LED tail light install in my older motorhome.
Install went great. And they work like a charm
