- SHROUDS: 2x E46-R Extended
- CENTRIC RINGS: Optional
- LED HALOS: Optional
- WARRANTY: 5 Years
- MORIMOTO PROJECTORS: All except Matchbox
- OEM PROJECTORS: Most except TL, LS430, LS460, Q45
- LENS DIAMETERS: 2.5" and 3" Compatible
- LED HALOS: See Size-Guide "In Action" section below
- MOUNTS WITH: Centric Rings and/or JB Quik Weld
- HEIGHT: 120mm
- WIDTH: 135mm
- DEPTH: 36mm
- FRONT HALO SIZE: 80mm
- FINISH: Forever Finish Chrome

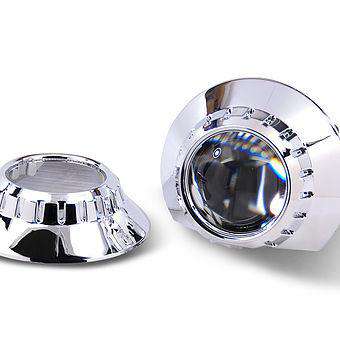

E46-R EXTENDED: An extended version of the original E46-R shroud, for those who believe that size does matter. Inspired by the BMW E46, enhanced for retrofitters. Compared to the standard E46-R, The "Extended" version is 10mm taller in overall height and has the dimples arrayed around it's face in a full circle.
IN COMPARISON: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.
MOUNTING: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.
LED HALOS: Are a unique and effective way to further customize the look of your projector retrofit. The all new Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below. These shrouds feature DRL-Vents that will glow with light if you wanted to do something a bit different and mount the halos inside.
TRIMMING: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool withEZ Lock cutting wheels to make the job easy.
